Stone Crusher

Capacity Range:10-2200t/h

10-50t/h 60-100t/h >100t/h and other customerized capacity

Output Size:0-5mm, 5-10mm, 10-20mm, 20-40mm and other sizes

Free Inquiry Get Quotation

Stone Crusher

Email:sino@zdzg.com

Introduction of Stone Crusher

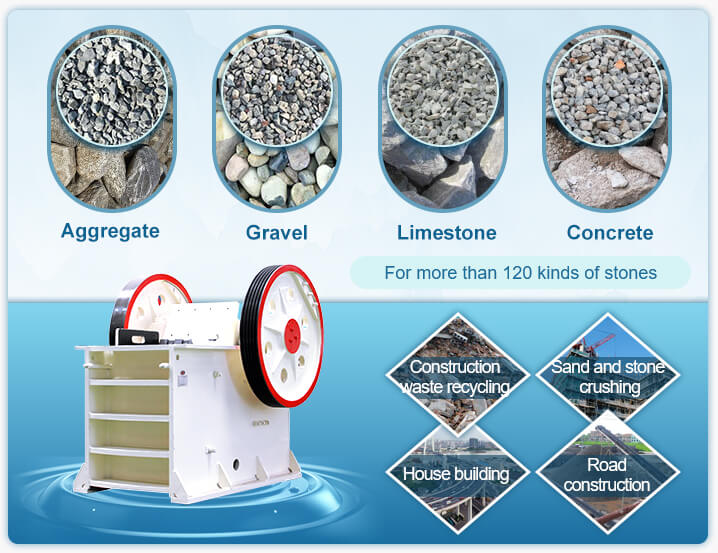

Stone crusher can crush more than 200 kinds of stones such as granite, quartz, gravel, marble, pebble, silica, coal, limestone, brick and iron. This machine can be used in sand and gravel yard, mining and crushing, coal mining and crushing, concrete mixing station, house building, road construction, etc.

The crusher’s production range is 1-2200t/h, and its feeding size is 120-1200mm. The size of the discharge port can be adjusted freely according to user needs.

Types of Stone crusher

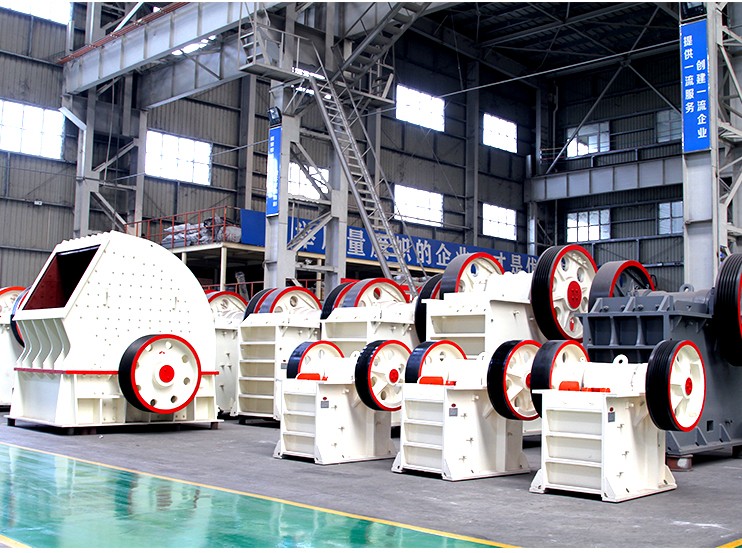

The popular stone crushers produced by our company are jaw crusher, cone crusher, hammer crusher and mobile crusher.

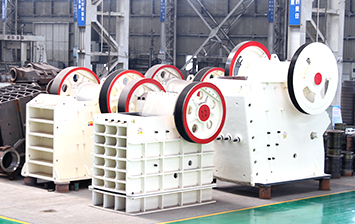

  • Jaw crusher widely used for the coarse, medium and fine crushing of various kinds of ores and rocks

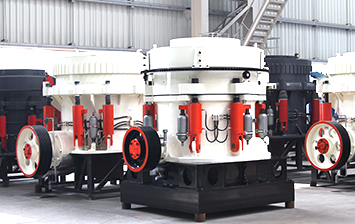

  • Hydraulic Cone crusher mainly used for hard material crushing,it has bigger capacity and better final products shape.

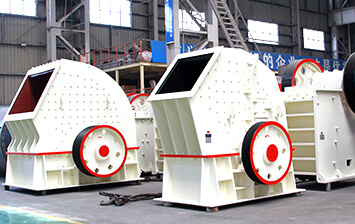

  • Pcz heavy hammer crusher is especially used to crush limestone and medium hard material

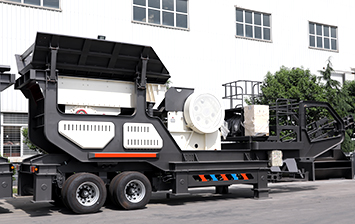

  • Mobile Crusher has high mobility and flexibility.

Technical Parameter

Hammer crusher

Cone crusher

Jaw crusher

Mobile crusher

Specification Capacity(t/h) Power (kw)
PC 400×300 3-10 4P 11
PC 600×400 6-22 4P 22
PC 800×600 10-40 4P 55
PC 1000×800 15-50 4P 75
PC 1000×1000 18-75 4P 90
PC 1200×1200 22-95 4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification Model Diameter
of large
end of
crushing
 cone
(mm)		 Max.feeding
size(mm)		 Width of
discharge
opening
(mm)		 Processing
capacity
(t/h)		 Motor
power
(kw)		 Total
weight
（t）		 Dimensions
(L×W×H)
（mm）
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
Model Feed opening size(mm） Max.Feeding size (mm) Adjustment range of discharge port (mm) Capacity(t/h) Rotation speed of eccentric shaft(r/min) Power (kw) Dimensions（L×W×H） (mm)
PE 150×250 150×250 125 10-40 1-3 268 4P   5.5 760×700×860
PE 200×300 200×300 180 15-50 2-6 260 4P   7.5 915×780×990
PE 200×350 200×350 180 18-60 3-10 276 4P   11 1000×914×1112
PE 250×400 250×400 210 20-70 5-21 300 6P   15 1100×1032×1285
PE 400×600 400×600 340 40-100 16-64 270 6P   30 1623×1736×1615
PE 500×750 500×750 425 50-100 40-110 268 6P   55 1920×1850×1920
PE 600×750 600×750 500 150-200 80-240 268 6P   55 2020×1850×1920
PE 600×900 600×900 500 65-160 50-160 254 6P   55 2530×1900×2340
PE 750×1060 750×1060 630 80-180 110-320 245 8P   110 2680×2380×2785
PE 900×1200 900×1200 750 100-200 220-380 208 8P   110 3470×2876×3330
PE1200×1500 1200×1500 1020 150-350 400-1000 180 8P   160-245 4850×3220×3680
PE1500×1800 1500×1800 1200 220-350 500-1200 180 8P   280-380 5160×3660×4248
PEX 150×750 150×750 120 18-48 8-25 320 4P   15 1170×1575×1030
PEX 250×750 250×750 210 25-60 13-35 320 6P   22 1550×1730×1470

PEX

250×1000

 250×1000 210 25-60 16-52 330 6P   30 1580×2006×1390

PEX

250×1200

 250×1200 210 25-60 20-61 330 6P   37 1780×2214×1430

PEX

300×1300

 300×1300 250 20-90 16-105 300 6P   55 2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model ZD938F1210 ZD938FW1214 ZD1149F1315 ZD1349HD1110 ZD1349HD1315
Transportation Length（mm） 12000 12000 13900 15450 15450
Transportation Width（mm） 2550 2550 2900 2950 2950
Transportation Height（mm） 3900 3900 4450 4500 4500
Maximum Length（mm） 12500 12500 13900 15450 15450
Maximum Width（mm） 3250 3260 3250 3250 3250
Maximum Height（mm） 5100 5200 5200 5200 5200
Weight（t） 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size（mm） 350 350 500 400 700
Production Capacity（t/h） 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) （kw） 320 320 400 320 440
Iron Separator (Optional)（kw） RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model ZD938HD80 ZD1149HD98 ZD1349HD110 ZD1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12

Price and Service

Prices for different categories and models are not the same, contact us to ask more details .There are three production bases in China. The machines produced are exported to more than 200 countries around the world, for example, Zimbabwe, Kenya, Zambia, Egypt, Saudi Arabia, Namibia, Philippines, Pakistan, Malaysia, Mongolia, Qatar, Ethiopia, Nepal, Papua New Guinea, Turkey, Italy, etc.
