Product Capacity:1-2200t/h
Feed Opening: 150×250-1600×2100mm
Applied Material: sandstone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite etc.
Free Inquiry Jaw crusher can crush most of the materials that need to be coarsely broken and crush a variety of materials with compressive strength not exceeding 320 MPA. The unique flywheel design can reduce vibration effectively and make the machine work more stably. The chamber of jaw crusher is deep, so as to increase the feeding capability and capacity.

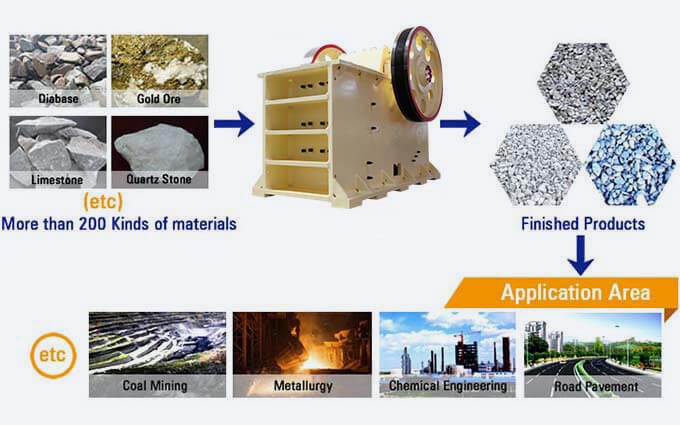

Materials that can be broken: pebbles, calcite, granite, quartzite, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, construction refuse, silica, cobblestone, basalt, sandstone, rock, ore, basalt, construction waste, Glass, cement clinker, and certain metals etc.

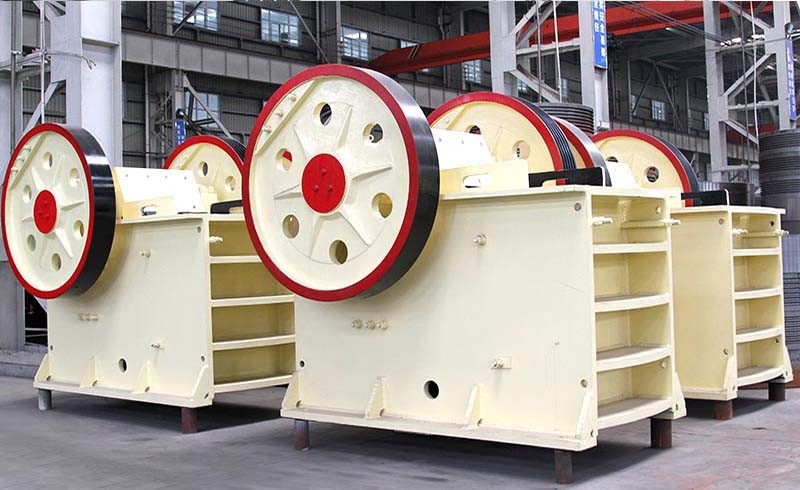

Jaw crusher
CJ series jaw crusher
HD German jaw crusher
PEY series Hydraulic Jaw Crusher
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size（mm） | Feeding opening size L×W（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ96 | 480 | 930×580 | 60-175 | 105-390 | 4P 90 | 2850×2270×1950 |
| CJ106 | 560 | 1060×700 | 70-200 | 150-500 | 4P 110 | 3280×2580×2400 |
| CJ120 | 700 | 1200×870 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 760 | 1250×950 | 100-250 | 270-831 | 4P 160 | 4230×2780×2960 |
| CJ150 | 960 | 1400×1200 | 125-250 | 340-880 | 4P 200 | 5030×3440×3970 |
| CJ160 | 960 | 1600×1200 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3580 |
| CJ200 | 1200 | 2000×1500 | 175-300 | 630-1435 | 6P 400 | 6600×4030×4400 |
| CJ1511 | 850 | 1500×1070 | 125-300 | 425-1195 | 6P 200 | 4130×3000×3330 |
| CJ1513 | 1040 | 1500×1300 | 150-300 | 530-1280 | 6P 200 | 4620×2890×4190 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Max.Feeding size （mm） | Adjustment range of discharge port（mm） | Capacity(t/h) | Power(kw) | Dimensions L×W×H （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 2100×1556×1640 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-280 | 8P 75 | 2200×1754×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-410 | 8P 110 | 2660×1960×2175 |
| HD110(912) | 850×1100 | 750 | 100-200 | 170-550 | 6P 132 | 2960×2381×2556 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 3500×2614×2925 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | PEY-400x600 | PEY-500x750 | PEY-600x900 | PEY-750x1060 |
PEY-300x1300 |
| Size of feeding port(mm) | 400x600 | 500x750 | 600x900 | 750x1060 | 300x1300 |
| Max. Feeding size (mm) | 340 | 425 | 500 | 630 | 250 |
| Discharging size(mm) | 40～90 | 35～100 | 75～125 | 80～150 | 20～100 |
| Eccentric shaft speed | 30 | 255 | 250 | 255 | |
| Handling capacity(t/h) | 30～65 | 50～120 | 80～200 | 120～220 | 40～100 |
| Power of main motor(KW) | 30 | 55 | 75 | 110 | 75 |
| Hydraulic cylinder | working pressure：5-7MPa ylinder diameter：Φ250mm Piston stroke：160mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
working pressure：11MPa ylinder diameter：Φ400mm Piston stroke：320mm |
working pressure：5-8MPa ylinder diameter：Φ320mm Piston stroke：200mm |
|
| Dimensions (L x W x H) | 3030x1350x1600 | 3300x1900x2100 | 3955x3360x2398 | 4980x2500x3100 | 4050x3420x1850 |
| Weight(kg) | 9480 | 16200 | 23400 | 37800 | 18200 |
