Processing capacity: 50-3200t/h
Feeding size:≤400–≤1700 mm
Materials: gypsum, limestone, aggregate, granite, gravel, coal, barite, rock, slag, brick, ore, etc.

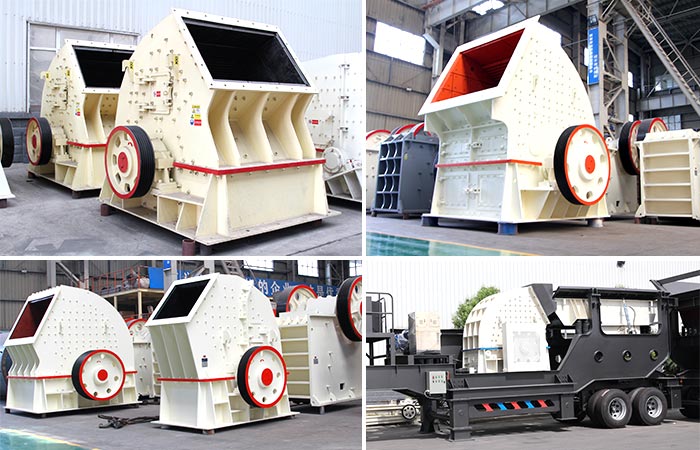

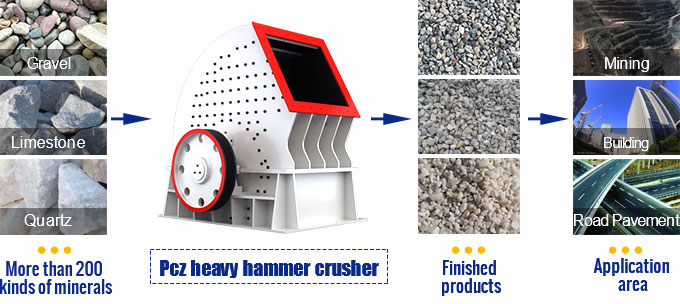

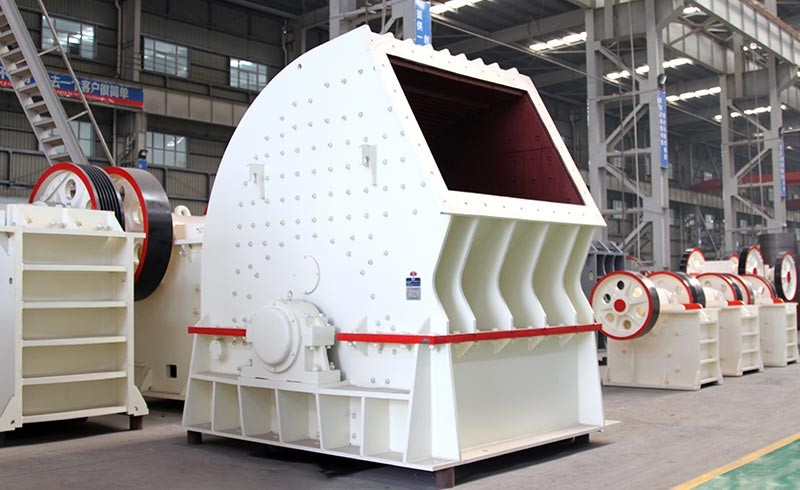

PCZ heavy hammer crusher is used for over 200 kinds of stones, such as limestone, concrete,aggregate, basalt, granite, quartz, gravel, marble, pebble, silica, coal, construction waste, etc.

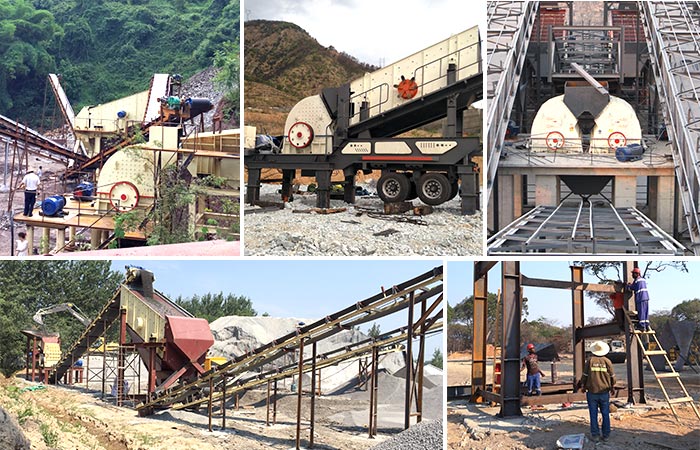

The crusher is widely used in the works of mine, smelting, building material, road, railway, irrigation, chemical industry, etc. It is especially used to crush limestone and medium hard materials which of compression strength are less than 200Mpa.
PCZ heavy hammer crushers shape up by single crushing without second time, so to reduce the cost by around 40%, which ensure energy and investment saving .
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model
Rotor diameter×length (mm)
Feed Opening Length×width(mm)
Feeding Size (mm)
Processing Capacity(t/h)
Power (kw)
Dimensions L×W×H (mm)
PCZ1308
Φ1330×790
870×780
≤380
60-160
132
2880×2130×2390
PCZ1410
Φ1400×1000
1060×740
≤450
80-210
2×90(160)
2830×2100×2485
PCZ1610
Φ1600×1000
1090×930
≤480
100-230
2×132
3370×2415×2750
PCZ1612
Φ1600×1200
1340×1140
≤500
120-350
2×160
3370×2613×2750
PCZ1615
Φ1600×1500
1570×1140
≤550
200-550
2×200
3370×2925×2750
PCZ1716
Φ1700×1600
1420×1200
≤600
400-850
2×250
3520×3000×3210
PCZ1720
Φ1700×2000
2030×1200
≤650
500-1000
2×400
3670×3390×3330
PCZ1920
Φ1900×2000
1980×1210
≤750
800-1500
2×500
4490×3910×3600
PCZ2225
Φ2200×2500
2530×1610
≤1000
1500-3000
1250
4890×5010×4560
