Copper Ore Processing Plant

Materials: Copper Ore

Processing Methods: Flotation Separation Process

Related Equipment:

Hot Sale Capacity: 1-10T/H, 10-50T/H, 50-100T/H

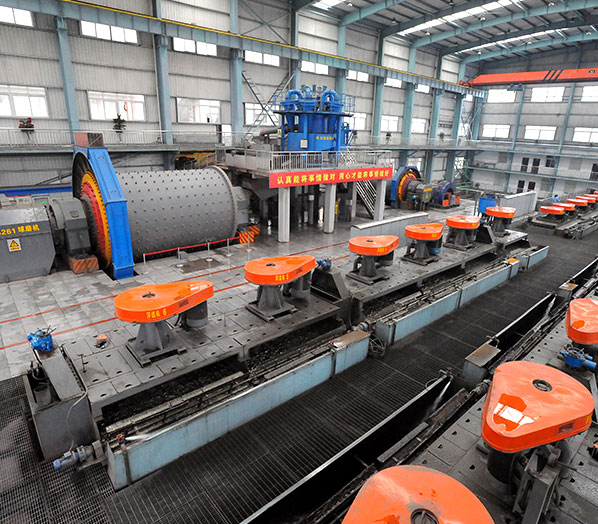

Introduction of Copper Ore Processing Plant

Copper is one of the important non-ferrous metals and is mostly selected by flotation in the production process. At first, the copper ore is coarsely ground into small pieces, next ground to a certain particle size, and then add the beneficiation agent therein. In this way, the ore particles float up, and the final foam product is collected and further dehydrated to obtain copper concentrate.

ZDZG has different types of Flotation Machines available, such as SF Flotation Machine, XCF Flotation Machine, KYF Flotation Machine, BF Flotation Machine.

Flotation Separation Process

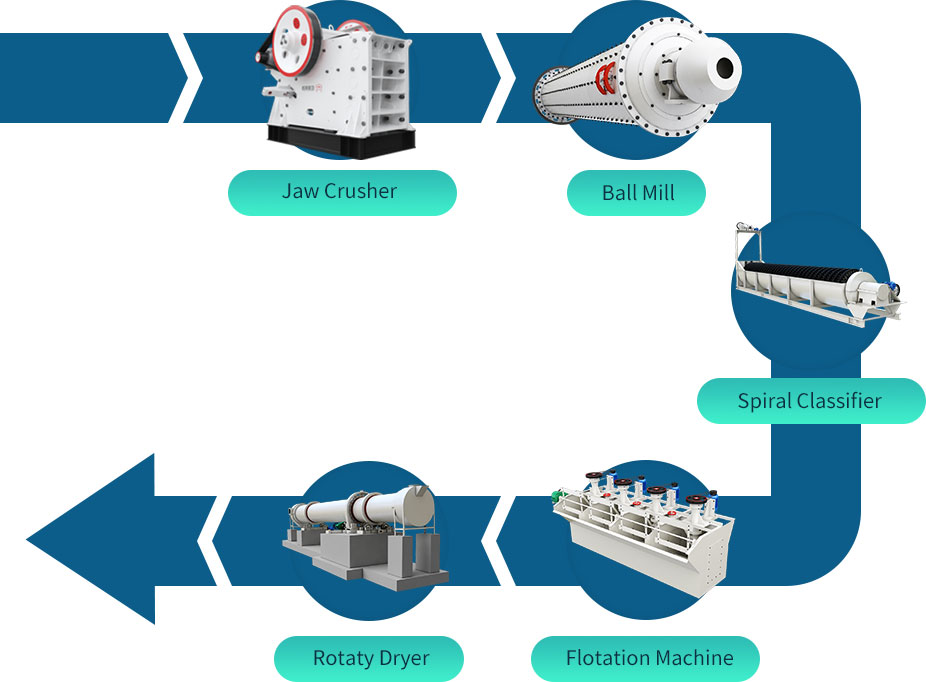

Crushing and Screening → Grinding and Classification → Priority Flotation of Copper Concentrate → Activation and Flotation of Other Concentrates → Concentration and Dewatering.

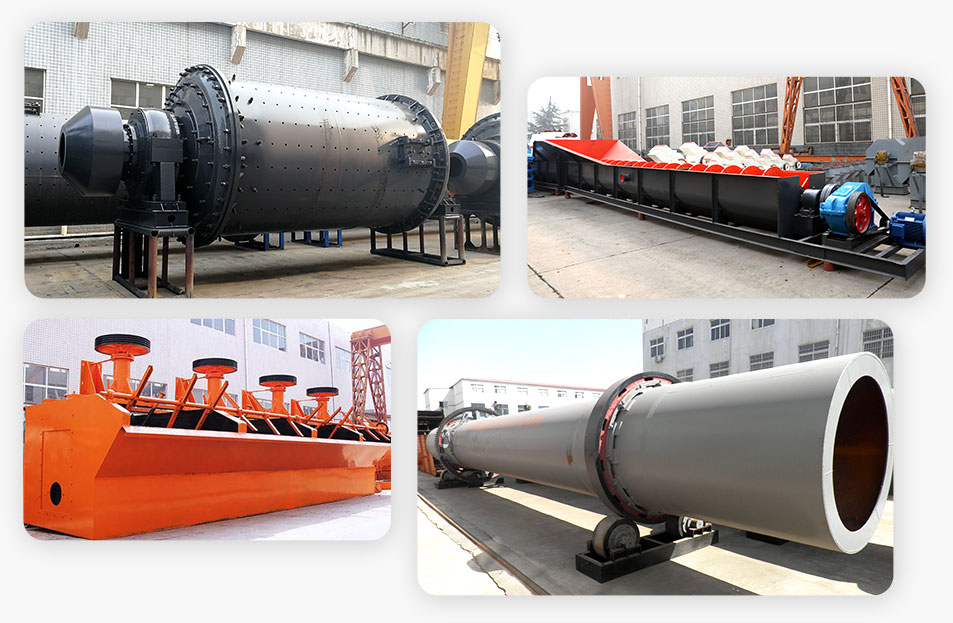

Related Equipment: Jaw Crusher, Ball Mill, Flotation Machine, Spiral Classifier, Mixer, Concentrator, etc.

Technological Advantages

1. Simple process and easy to operate;

2. Relatively low processing cost;

3. Simple application of flotation chemicals;

4. High degree of copper enrichment, effectively enhance the recovery rate.

Notes on Flotation of Copper Ore

1. Appropriate Sulphide Time

The more suitable sulphuration time for copper oxide ore is about 2 minutes, beyond 6 minutes, the recovery and concentrate grade may drop.

2. Flotation Reagent Addition Method and Ratio

Adding the right amount of lime (adjusting agent) can reduce the consumption of sodium sulphide (activator) and save costs. And the right ratio of sodium sulphide dosage to lime dosage will give a better separation effect.

3. Correctly Control the Pulp Concentration and Fitness

The finer the ore is ground, the greater the amount of particles produced and the greater the adsorption of chemicals. The increase in pulp concentration relatively increases the concentration of pharmaceutical ions in the pulp, which can reduce the amount of pharmaceuticals.

Cases of Copper Ore Processing Plant

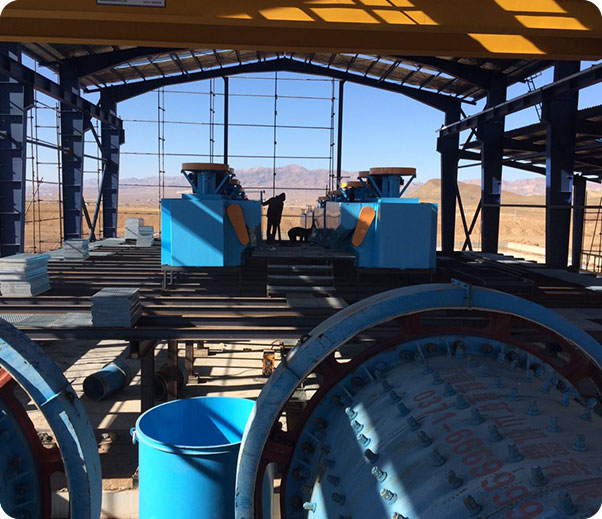

300t/h Copper-Molybdenum Ore Beneficiation Plant in Mongolia

Materials: Copper Ore

Capacity: 300t/h

Device Configuration

PE Jaw Crusher, PEX Impact Crusher, Ball Mill, Spiral Classifier, Flotation Machine and Dryer, etc.

Customer's Feedback:

By using the Zhongde Heavy Industries processing plant, we realize the following purposes of higher dressing index and low dressing cost. The level of copper-molybdenum ore concentrates is improved by 50% higher. The whole economic benefits are quite favorable.

Free Customized Design

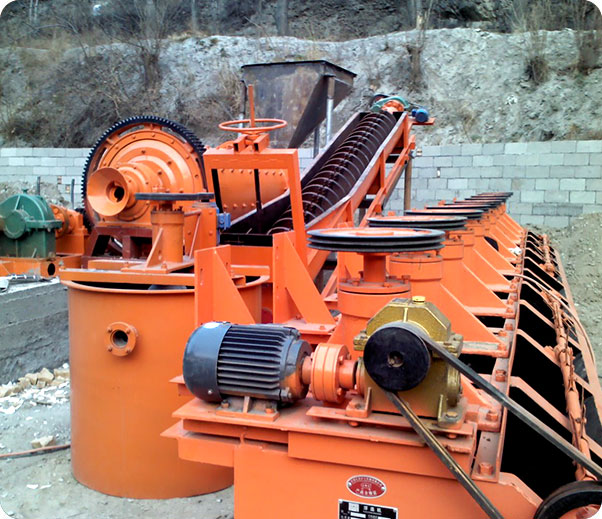

Copper Ore Processing Plant in Tanzania

Materials: Copper Ore

Capacity:10t/h

Device Configuration:

Ball Mill, Flotation Machine, Spiral Classifier, Mixer, Concentrator, etc.

Customer's Feedback:

The Whole space design is very reasonable. Under the principle of not wasting land, the advice of keeping daily check and maintenance on equipment is very useful to realize the convenience for management, so we are very satisfied that they do the right things for every tiny point.

Free Customized Design
