Applied Materials: dolomite, cement clinker, bauxite, active lime, aluminium hydroxide, chromium ore, etc.
Get Quotation
Free Inquiry
Get Quotation
Free Inquiry
Leave message
E-mail：sino@zdzg.com

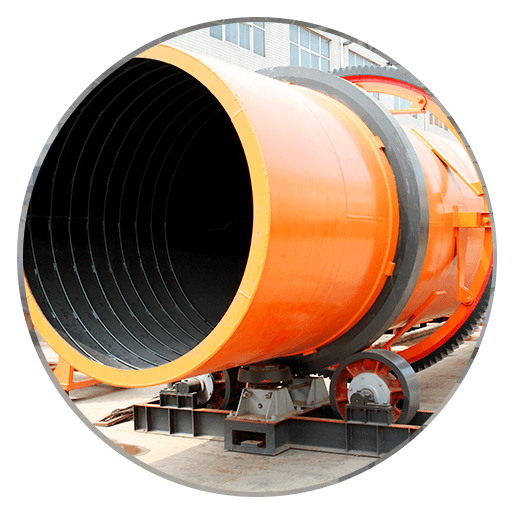

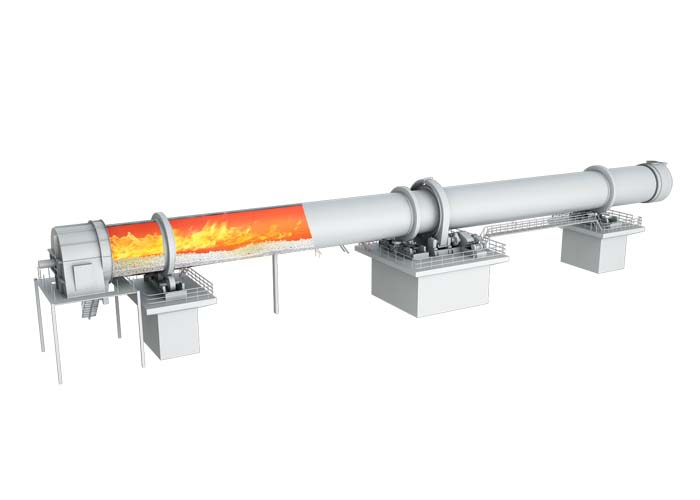

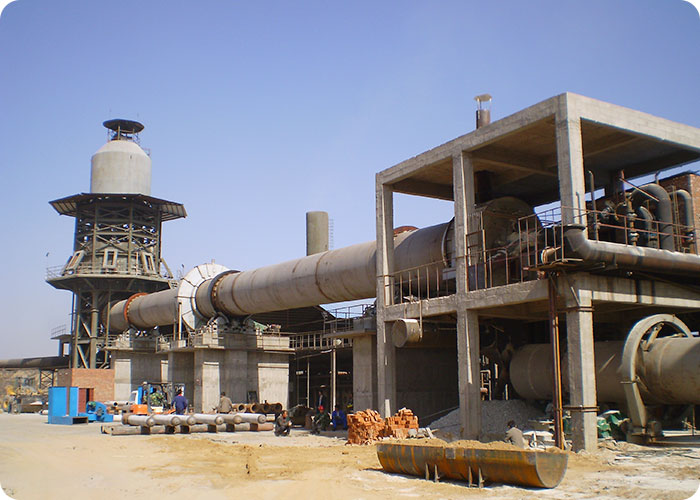

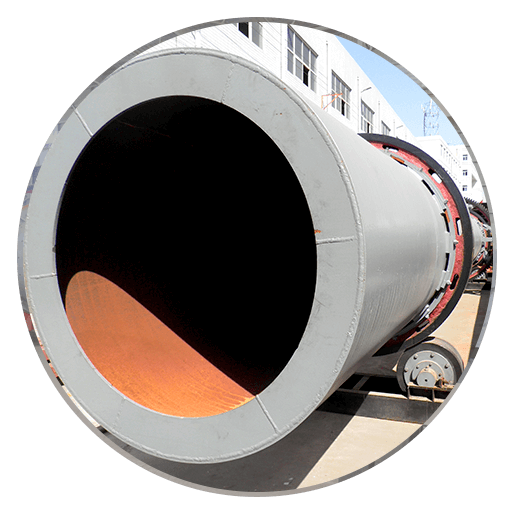

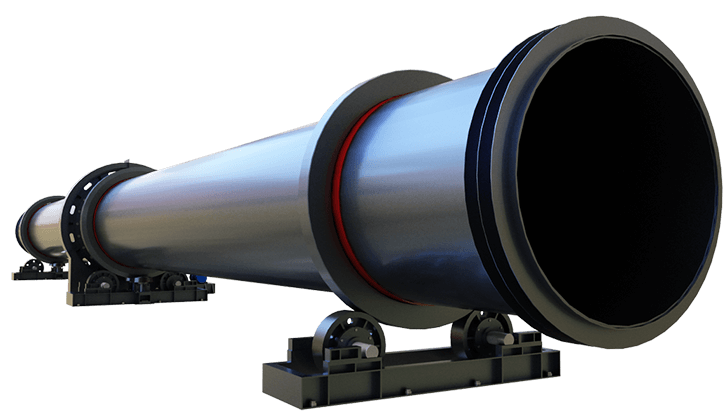

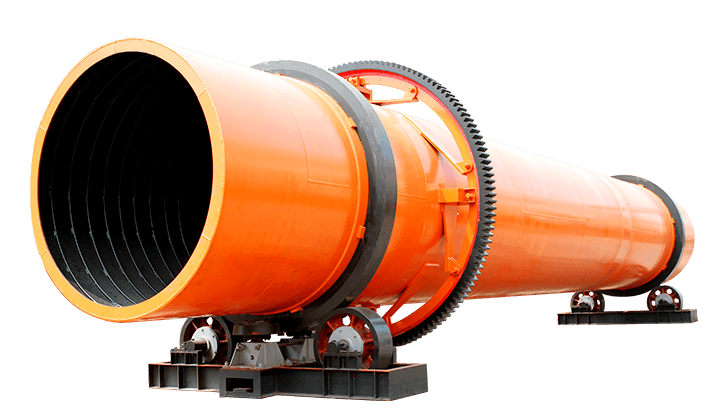

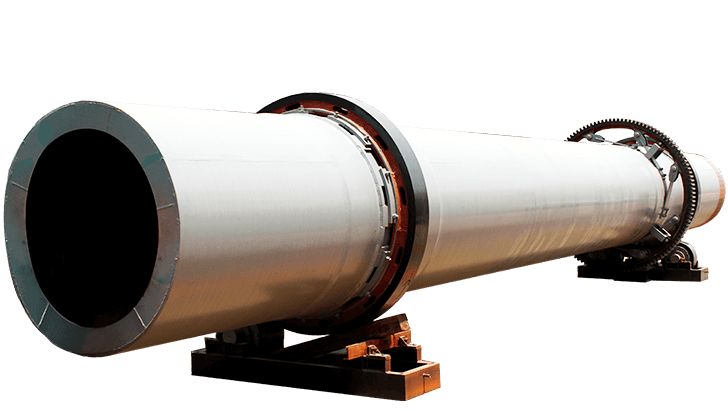

Rotary kiln refers to rotary combustion kiln (commonly known as rotary kiln), which belongs to building materials and equipment. Rotary kiln can be divided into cement kiln, metallurgical chemical kiln and lime kiln according to different material processing.
Calcined materials: cement clinker, dolomite
Roasting materials: iron ore, chromium (nickel) iron ore, high alumina bauxite, aluminum hydroxide, chrome ore, chrome ore, active lime

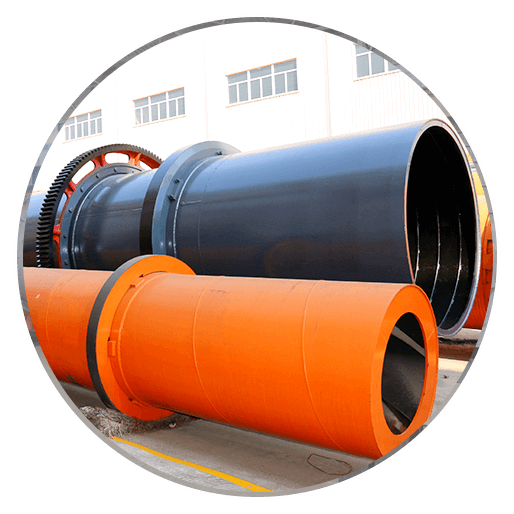

Rotary kilns are divided into large, medium and small models. Different types of machines can be customized according to your own needs. The most popular models are: Ф3.0×45, Ф 3.2×50, Ф3.5×54, Ф4.0×60, etc
|
Product Specification （m） |
Kiln dimensions |
Motor power （kw） |
Total weight （t） |
note | ||||
|
Diameter （m） |
Length （m） |
Obliquity （%） |
Capacity （t/d） |
Rotation speed （r/min） |
||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
|
Design capacity (t/d) |
150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | 1000 | |
| Product |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
|
| Preheater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre-heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
Vertical Polygon preheater |
Vertical Polygon preheater |
Vertical Polygon preheater |
|
|
Rotary kiln |
Specification （m） |
Φ2.5 × 40 |
Φ2.8 × 42 |
Φ3 × 46 |
Φ3.2 × 50 |
Φ3.5 × 54 |
Φ3.6 × 56 |
Φ3.8 × 58 |
Φ4×60 Φ4.2×50 |
Φ4.3 × 58 |
Φ4.3 × 64 |
Φ4.8 × 68 |
|
Effective volume （m³） |
142 | 190 | 235 | 292 | 390 | 430 | 505 | 575/548 | 670 | 738 | 1005 | |
|
Burning temperature （°C） |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
|
| Fuel |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
|
|
Heat rate ( KJ/KgC3O
)
|
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5225 | 5225 | 5100 | 5100 | 4810 | 4810 | 4810 | |
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
There are many factors that determine the price of the Rotary kiln, mainly the type of machine and the size of the model; the machines produced by our company are factory direct sales, Guarantee 100% factory price
As an advanced manufacturer and exporter in China, our company has produced several series of machines all over the world, such as Australia, Malaysia, Indonesia, Philippines, India, Pakistan, South Africa, Tanzania, Egypt, etc., which have been unanimously affirmed by users. The rate is over 80%
