Feeding Size:≤326mm
Capacity: 72-1100t/h

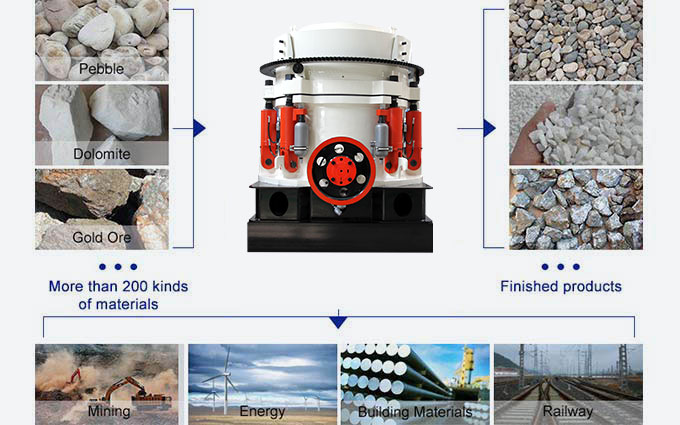

Applied Materials: quartz, river pebbles, dolomite, granite, basalt, iron ore, limestone, construction waste, etc.

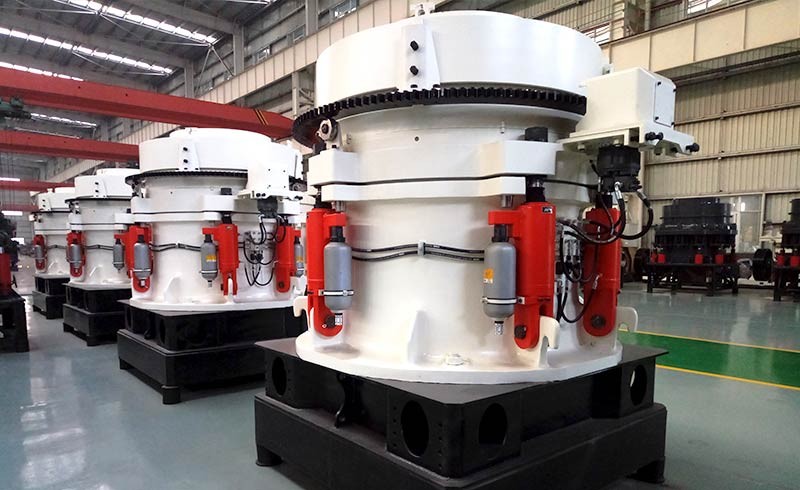

HXHP series multi-cylinder hydraulic cone crusher is a new type of cone crusher developed by Henan Zhongde Mining Machinery Co., Ltd and suitable for crushing high-hard materials and strict requirements on product shape. This machine is superior to the traditional spring cone crusher.
The multi-cylinder hydraulic cone crusher is suitable for crushing various ores and rocks of medium hardness and above, such as limestone, iron ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, etc. Its high speed, high crushing capacity and unique patented design make the finished product with extremely high quality cube shape, and the easy maintenance features ensure extraordinary high stability operation. It is famous all over the world and is a new generation of replacements for spring cone crushers and renewal of general hydraulic cone crushers in the mining industry today.
During operation, the pulley, the coupling, the transmission shaft and the conical portion are driven by the rotation of the motor to make the eccentric shaft rotate periodically under the axial line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact of the eccentric shaft and the rolling wall. The hydraulic safety system can remove the faulty parts from the support sleeve and the fixed taper part by hydraulic pressure when the machine has an iron fault or a stuffy car phenomenon, which greatly reduces the maintenance rate and improves the production efficiency while playing a good insurance function.
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model
Cavities
Broken cone big end diameter(mm)
Feeding size(mm)
Maximum Feeding size(mm)
Adjusting Range of Discharge port(mm)
Capacity(t/h)
Power(kw)
Weight of main machine(t)
HPM200
C1
900
185
145
22
160~250
160
11
C2
125
100
18
145~250
C3
95
75
14
120~250
F1
76
60
12
108~210
F2
54
45
10
81~210
HPM300
C1
1100
235
190
26
230~445
220
20
C2
211
170
20
200~445
C3
150
120
16
180~445
C4
107
85
14
160~220
F1
53
40
12
140~220
HPM400
C1
1400
299
240
35
270~630
315
27
C2
252
200
25
252~630
C3
198
160
25
243~630
C4
111
190
18
210~630
F1
92
75
15
162~370
F2
52
40
13
126~370
HPM500
C1
1500
335
270
38
365~790
400
40
C2
286
230
30
328~790
C3
204
165
22
280~790
C4
133
105
20
202~450
F1
95
75
16
175~450
F2
52
42
8
158~450
HPM650
C1
328
262
30
386~790
500
C2
279
225
25
348~790
C3
196
175
20
300~790
F1
106
85
13
280~530
F2
52
42
9
220~530
HPM800
C1
2000
353
280
38
616~1100
630
70
C2
297
240
38
522~1100
C3
267
214
25
495~1100
C4
219
175
22
380~1100
F1
155
125
20
328~730
F2
92
75
16
270~730
NOTE: please feel free to fill out the form below in detail and you can also send a message to us(sino@zdzg.com), we will send you latest price within 24 hours.Besides, you can click Chat Online on the right hand side to get quotation online
