Capacity Range: 70-650t/h
60-100t/h 100-200t/h >200t/h and other customerized capacity
Output Size:0-5mm, 5-10mm, 10-20mm, 20-40mm and other sizes
Free Inquiry
Get Quotation

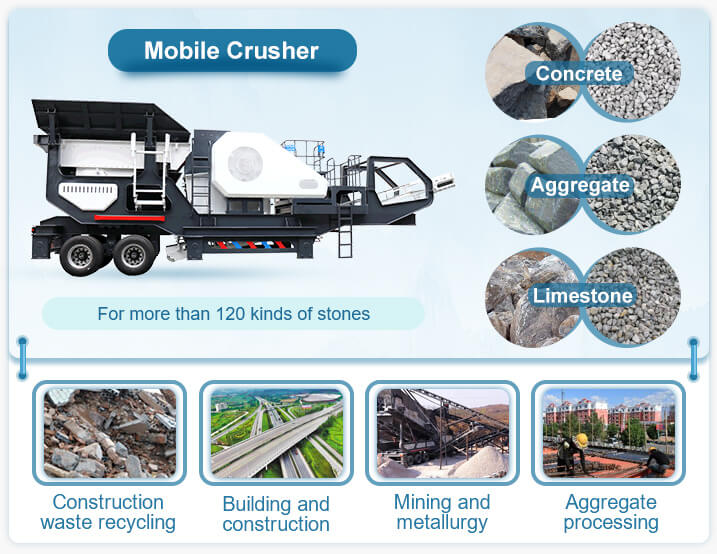

Our mobile crusher can crush concrete, coal, rock, limestone, granite, aggregate, gravel, basalt, quartz, iron ore, gold ore, and other kinds of stones.

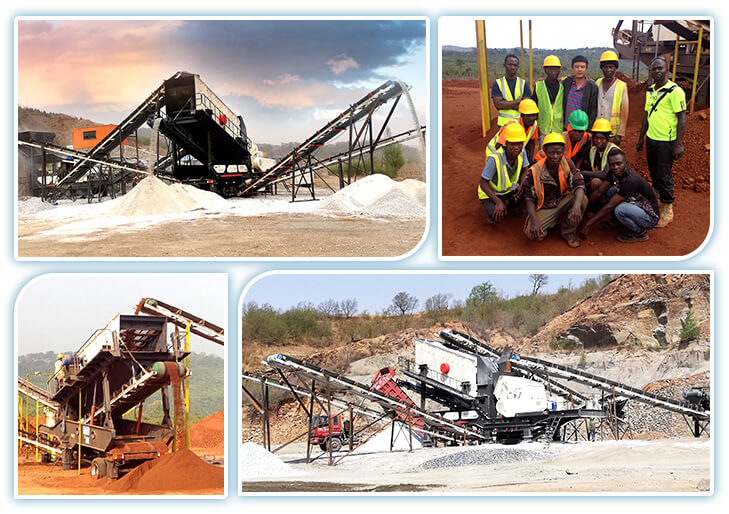

The mobile crusher is widely used in construction waste recycling, road and railway construction, aggregate and sand industry, urban infrastructure and other mining and quarry operations.
Mobile crushers are as reliable as non-mobile crushers. Most owners who have operated both mobile and stationary crushers prefer mobile units.

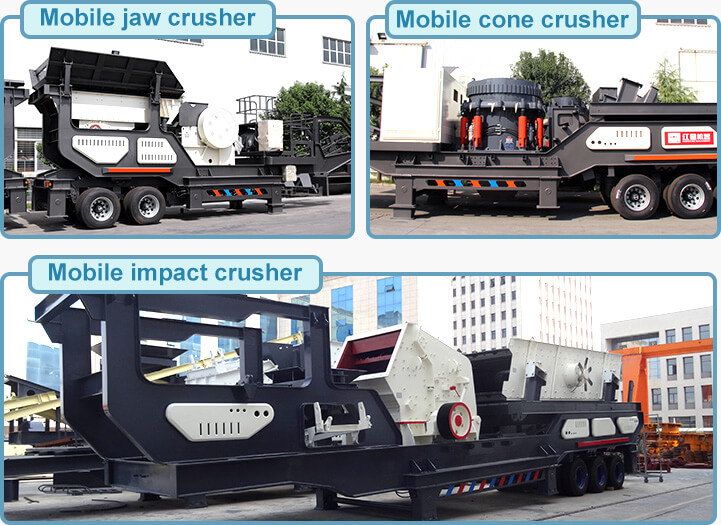

For Customers, mobile crusher means any type of movable crusher. We offer mobile jaw crusher, mobile cone crusher, and mobile impact crusher and other mobile stone crushers. Mobile crusher can be combined screen, feeder, conveyor and other equipment as a functioning mobile crushing plant. If you also want non-mobile crushers, we have jaw crusher, cone crusher, impact crusher and other stone crushers.

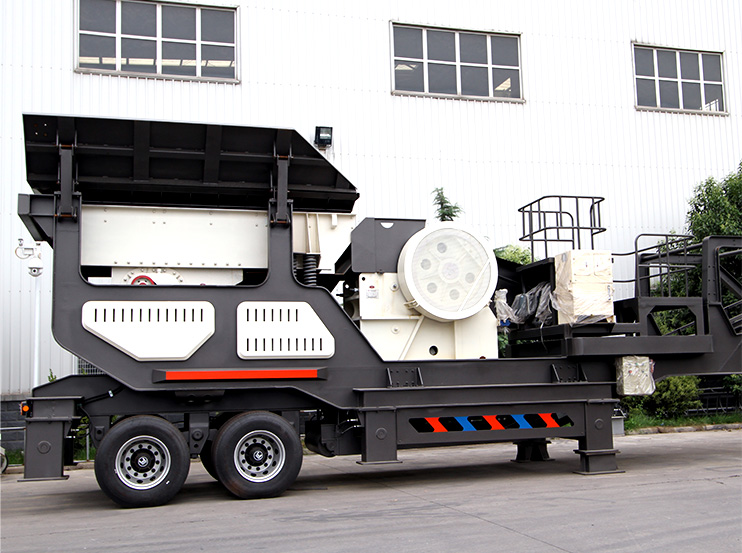

Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Cone Crusher
Mobile Screening Plant
Mobile Sand Making Plant
Mobile Impact Crush Screen Plant
| Model | ZD938HD86 | ZD1149HD98 | ZD1349HD110 | ZD1349HD125 |
| Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
| Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
| Model | ZD938F1210 | ZD938F1214 | ZD1149F1315 | ZD938F1110 | ZD1349F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width(mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height(mm) | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 | 62 | 62 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 | 700 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
| Model | ZD3S185GYS300 | ZD3S216GYS400 | ZD3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
| Model | H3S1848 | H3S1860 | ZD3S2160 |
| Transportation length(mm) | 10280 | 11480 | 11480 |
| Transportation Width(mm) | 2830 | 2830 | 3150 |
| Transportation Height(mm) | 4350 | 4350 | 4350 |
| Maximum Length(mm) | 11100 | 11800 | 11800 |
| Maximum Width(mm) | 3600 | 3600 | 3970 |
| Maximum Height(mm) | 6000 | 6000 | 6500 |
| Weight(t) | 16 | 18 | 19 |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
| Model | ZD3S1848V08 | ZD3S1860V09 | ZD3S2160V103 |
| Transportation length(mm) | 13500 | 15600 | 15600 |
| Transportation Width(mm) | 2830 | 2830 | 3100 |
| Transportation Height(mm) | 4350 | 4350 | 4480 |
| Maximum Length(mm) | 14650 | 16300 | 16300 |
| Maximum Width(mm) | 3900 | 3900 | 3900 |
| Maximum Height(mm) | 5980 | 6400 | 6550 |
| Weight(t) | 31 | 36 | 49 |
| Tire Configuration | Biax Fitted | Biax Fitted | Biax Fitted |
| Sand maker | HVI0815 | HVI0922 | HVI1032 |
| Discharging Belt Conveyor | B800×2.2M | B800×2.5M | B1000×2.5M |
| Belt under vibrating screen | B800×7M | B800×8M | B1000×8M |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
| Model | ZD3S184F210 | ZD3S185F214 | ZD3S216F315 | ZD3S184HD1110 | ZD3S216HD1315 |
| Transportation lenght(mm) | 14600 | 15000 | 16000 | 16000 | 16000 |
| Transportation Width(mm) | 2800 | 2900 | 3100 | 3100 | 3100 |
| Transportation Height(mm) | 4400 | 4400 | 4550 | 4400 | 4550 |
| Maximum Lenght(mm) | 16000 | 16000 | 17000 | 16500 | 17000 |
| Maximum Width(mm) | 3800 | 3900 | 4600 | 3900 | 4600 |
| Maximum Height(mm) | 6500 | 6500 | 6900 | 6800 | 6900 |
| Weight(t) | 35 | 41.5 | 54 | 42 | 48.5 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial | Triaxial |
| Impact Crusher | PF1210 | PF1214 | PF1315 | HD1110 | HD1315 |
| Feeding belt conveyor | B650×15M×2 | B800×15M×2 | B1000×15M×2 | B800×15M×2 | B1000×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B1000×16M | B800×16M | B1000×16M |
| Conveyor Belt For Final Product | B500×15M×2 | B500×15M×2 | B650×15M×2 | B500×15M×2 | B650×15M×2 |
| Under Vibrating Screen | B800×7.5M | B800×7.5M | B1000×9M | B800×8M | B1000×9M |
| Vibrating Screen Model | 3YZS1848 | 3YZS1854 | 3YZS2160 | 3YZS1848 | 3YZS2160 |
