Production Capacity300t/h-450t/h
Input Size 60-660mm

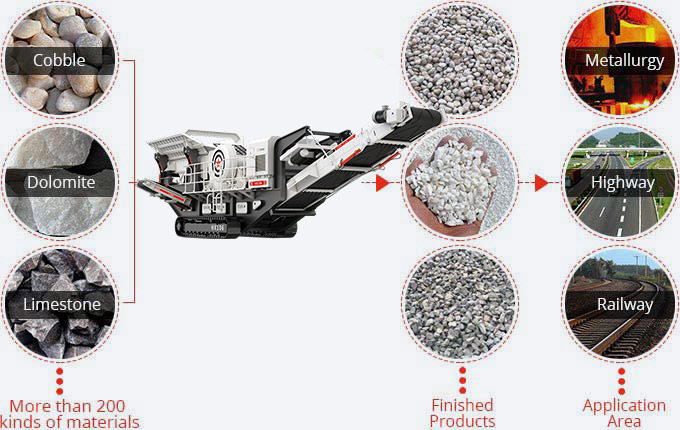

Applied Material limestone, calcite, granite, basalt, river pebbles, slag, slag, marble, gypsum and other mines, rocks, construction waste.

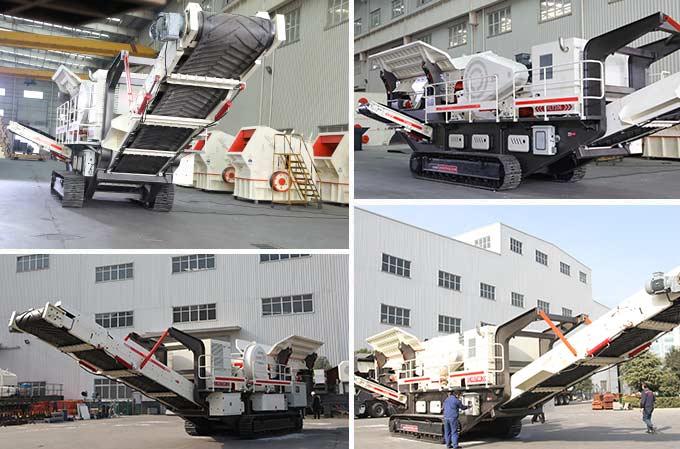

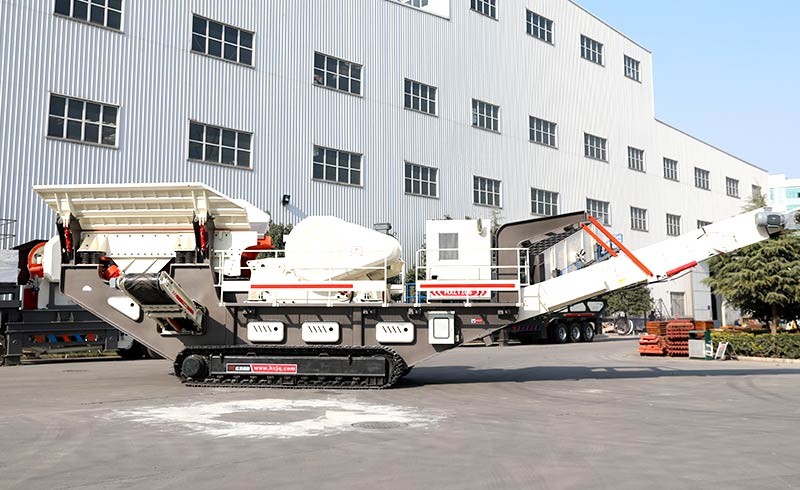

The crawler mobile crusher is a high-efficiency crushing device. It adopts a crawler-type driving method with excellent technology and complete functions. Under complex road conditions, the crawler-type mobile crushing station can also select the site and drive directly to the site without transportation. The granularity of the finished product can be flexibly adjusted according to customer needs. With low cost and good returns, the crawler type mobile crushing plant can meet the production crushing operations of different scales.
It is widely used in mining, stone mining, highway railway and bridge construction, urban construction waste treatment and many other fields.
The equipment can be equipped with high-performance crushing equipment, such as jaw crusher, impact crusher, cone crusher, etc. according to the user's crushing and screening requirements. It can also achieve the process “crush first and then sieve” or “first screen and crush”.
Outstanding advantages: flexible combination-form a coarse and fine crushed two-stage crushing system or a coarse, medium and fine crushing three-stage crushing system; reliable performance-higher strength, better performance, compact structure, simple and convenient maintenance and durability; reduce transportation costs-can adapt to the complicated and harsh production environment because of the strong moving performance; excellent crushing effect-provide flexible process configuration to meet various requirements such as mobile crushing and moving screening.
Tracked Jaw Crusher
Tracked Impact Crusher
Tracked Cone Crusher
Crawler Mobile Screening Plant
Model | WT96 | WT106 | WT120 | |
Dimensions of Transmission Devices | Length | 14200mm | 14900mm | 15200mm |
Width | 2900mm | 3000mm | 3200mm | |
Height | 3470mm | 3600mm | 3700mm | |
Weight | 38t | 50t | 65t | |
Feeder | Hopper Volume | 5m³ | 5m³ | 6m³ |
Loading Height | 3900mm | 4100mm | 4300mm | |
FeederModel | GZDT3895 | GZDT1145 | GZDT1245 | |
Unearthed Belt Conveyors | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
Dumping Height | 3100mm | 3200mm | 3400mm | |
Crusher | Model | CJ96 | CJ106 | CJ120 |
Inlet Dimensions | 930×580mm | 1060×700mm | 1200×870mm | |
Max.Feeding Size | 480mm | 560mm | 700mm | |
Main Belt Conveyor | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
Dumping Height | 3100mm | 3200mm | 3400mm | |
Iron Remover | Model | RCYQ-8 | RCYQ-10 | RCYQ-10 |
Diesel Engine | Power | 96kw | 106kw | 132kw |
Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
The Main Machine | Power | 112.9kw | 141.4kw | 196.2kw |
Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 | |
Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
Weight | 40t | 45t | 53t | 60t | 65t | |
Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
Main Belt Conveyor | Dimensions (Width×Length) |
1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | 650×2500mm | ○ | 650×2800mm | ○ |
Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | 500×8000mm | ○ | 500×9200mm | ○ |
Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
Model | WT160SC | WT250SC | WT300HPM | WT400HPM | |
Dimensions of Transmission Devices | Length | 16800mm | 19000mm | 19000mm | 19500mm |
Width | 3500mm | 3600mm | 3900mm | 3900mm | |
Height | 3700mm | 3800mm | 3800mm | 3800mm | |
Weight | 50t | 60t | 55t | 65t | |
Belt Conveyor | Hopper Volume | 3m³ | 3m³ | 3m³ | 3m³ |
Loading Height | 2600m | 2600m | 2600m | 2800m | |
Loading Width | 1900mm | 1900mm | 1900mm | 1900mm | |
Dimensions (Width×Length) |
1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm | |
Crusher | Model | SC160 | SC250 | HP300 | HP400 |
Inlet Dimensions | 75-360mm | 75-450mm | 60-200mm | 68-280mm | |
Max.Feeding Size | 360mm | 450mm | 200mm | 280mm | |
Min. Discharging Size | 8-25mm | 8-35mm | 8-45mm | 8-51mm | |
Main Belt Conveyor | Dimensions (Width×Length) |
1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
Dumping Height | 3100mm | 3490mm | 3490mm | 3690mm | |
Secondary Screen | Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
Model | ZD1536 | ZD1536 | ZD1536 | ZD1536 | |
Sieve Dimensions | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm | |
Belt Conveyors at the Bottom | Dimensions (Width×Length) |
1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
Dumping Height | 3020mm | 3020mm | 3020mm | 3300mm | |
Belt Conveyors to the Sieve | Dimensions (Width×Length) |
650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
Dumping Height | 1370mm | 1370mm | 1370mm | 1370mm | |
Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm | |
Diesel Engine | Power | 96kw | 132kw | 106kw | 132kw |
Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
The Main Machine | Power | 207.12kw | 297.12kw | 267.12kw | 362.12kw |
Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
Model | ST673 | ST993 | ST1303 | |
Dimensions of Transmission Devices |
Length | 11000mm | 12500mm | 12500mm |
Width | 3800mm | 4000mm | 4000mm | |
Height | 3800mm | 3900mm | 3900mm | |
Weight | 28t | 33t | 38t | |
Feeding Belt Conveyor | Dimensions (Width×Length) |
1000×10000mm | 1000×10000mm | 1000×13000mm |
Loading Height | 2560mm | 2680mm | 2700mm | |
Vibrating Screen | Model | 3ZD1545 | 3ZD1855 | 3ZD2160 |
Sieving Layers | 3 | 3 | 3 | |
Belt Conveyor | Dimensions (Width×Length) |
1000×7400mm | 1000×7500mm | 1000×7500mm |
Discharging Height | 3380mm | 3460mm | 3460mm | |
Belt Conveyor for Coarse Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
Discharging Height | 3430mm | 3570mm | 3570mm | |
Belt Conveyor for Medium-Sized Material |
Dimensions (Width×Length) |
500×5300mm | 650×5400mm | 650×5400mm |
Discharging Height | 3150mm | 3250mm | 3250mm | |
Belt Conveyor for Fine Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
Discharging Height | 3030mm | 3080mm | 3080mm | |
Transferring Belt Conveyors | Dimensions (Width×Length) |
500×2000mm | 650×2000mm | 650×2000mm |
Discharging Height | 2130mm | 2130mm | 2130mm | |
Diesel Engine | Power | 75kw | 75kw | 96kw |
Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
The Main Machine | Power | 54kw | 57.5kw | 65.5kw |
Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
