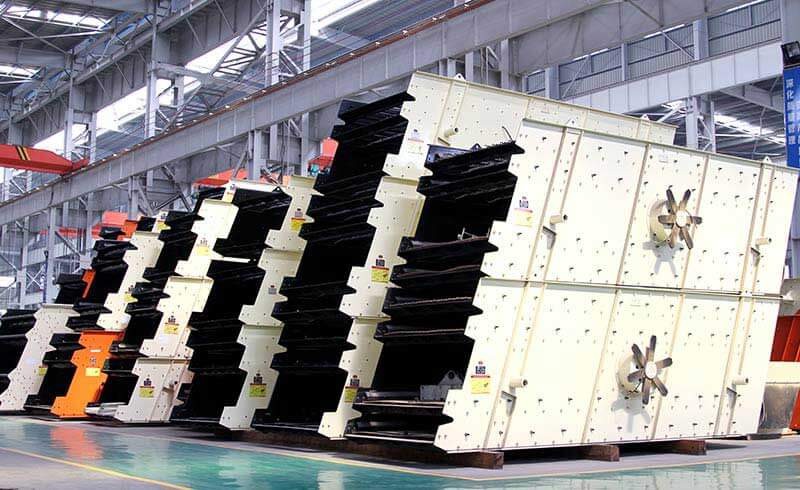

Introduction of Circular Vibrating Screen

Vibrating screen is a kind of screen which can make the material be thrown up on the screen surface by using the principle of exciting vibration of the vibrating motor and make a reasonable match of the straight motion forward so as to achieve the purpose of screening.

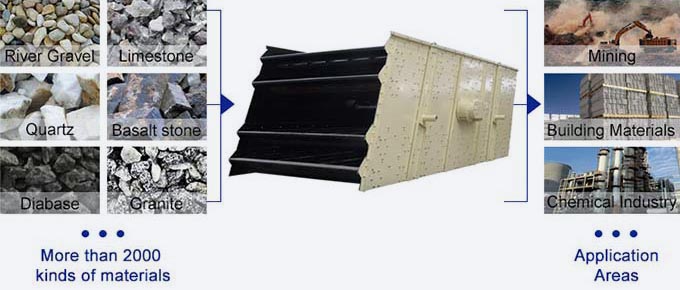

Vibrating screen is mainly used for screening and grading of powder and granular materials. It is widely used in plastics, abrasives, chemical industry, medicine, building materials, grain, carbon, fertilizer and so on.

Technical Parameter

YK Series Vibrating Screen

HX Series Vibrating Screen

Linear vibrating screen

Model	Sieve layer	Sieve area (㎡)	Mesh size (mm)	Max. feeding size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double amplitude (mm)	Motor power (kw)	Sieve obliquity (°)	Sieve specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3430×1860×870
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3570×1860×1210
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4050×1860×870
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4270×1860×1210
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5420×2210×1230
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	5660×2210×1610
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6230×2210×2060
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	5960×2550×1420
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6260×2550×1780
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6830×2550×2160
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	6720×2840×1530
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7030×2840×1910
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7300×2840×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7020×3140×1530
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7300×3140×1910
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7600×3140×2380
2YK2873	2	39.2	5-100	200	70-680	750	6	6P 37	20	2800×6440	7600×4320×1620
3YK2873	3	58.8	5-100	200	80-720	750	6	6P 45	20	2800×6440	7800×4320×2120
4YK2873	4	58.8	5-100	200	90-950	750	6	6P 55	20	2800×6440	7800×4320×2120

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve Obliquity (°)	Motor Power (kw)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Capacity (t/h)	Dimensions(mm) （L×W×H）
2ZD1545	2	18	15	780-900	200	45-500	5380×2295×1410
3ZD1545	3	18	18.5	780-900	200	55-500	5575×2295×1990
4ZD1545	4	18-20	22	780-900	200	65-500	5765×2295×1990
2ZD1855	2	18	18.5	780-900	200	55-600	5680×2565×1450
3ZD1855	3	18	22	780-900	200	65-600	5900×2565×2110
4ZD1855	4	18-23	22	780-900	200	75-600	6030×2565×2500
2ZD2165	2	18	30	780-900	200	65-700	7160×2990×1690
3ZD2165	3	18	30	780-900	200	75-700	7380×2990×2365
4ZD2165	4	18-23	37	780-900	200	85-700	7430×2990×2500
2ZD2465	2	18	37	780-900	200	80-800	7160×3290×1690
3ZD2465	3	18	37	780-900	200	90-800	7380×3290×2365
4ZD2465	4	18-23	37	780-900	200	100-800	7430×3290×2500
2ZD2765	2	18	37	780-900	200	100-900	7180×3570×1805
3ZD2765	3	18	45	780-900	200	110-900	7390×3570×2445
4ZD2765	4	18-23	45	780-900	200	120-900	7480×3570×2715
2ZD3065	2	18	37	780-900	200	110-1200	7180×3870×1805
3ZD3065	3	18	45	780-900	200	120-1200	7390×3870×2445
4ZD3065	4	18-23	45	780-900	200	130-1200	7480×3870×2715
2ZD3075	2	18	22×2	780-900	300	120-1300	8700×4055×1980
3ZD3075	3	18	37×2	780-900	300	130-1300	8940×4120×2720

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve specification(L×W)	Sieve layer	Mesh size	Feeding size	Processing capacity	Motor power	Total weight	Vibrating frequency	Double amplitude	Sieve obliquity	Dimensions (L×W×H)
Model	（mm）	Sieve layer	（mm）	（mm）	(t/h)	（kw）	（kg）	(Hz)	(mm)	（℃）	(mm)
ZSG1237	3700×1200	1	4-50	≤200	10-100	5.5×2	2250	16	6-8	15	3800×2050×1920
2ZSG1237	3700×1200	2	4-50	≤200	10-100	5.5×2	3345	16	6-8	15	3800×2050×2200
ZSG1443	4300×1400	1	4-50	≤200	10-150	5.5×2	4100	16	6-8	15	4500×3040×2500
2ZSG1443	4300×1400	2	4-50	≤200	10-150	5.5×2	4900	16	6-8	15	4500×3040×2700
3ZSG1443	4300×1400	3	4-50	≤200	10-150	5.5×2	5870	16	6-8	15	4500×3040×2820
2ZSG1548	4800×1500	2	5-50	≤200	15-200	7.5×2	5836	16	8-10	15	4800×3140×2814
3ZSG1548	4800×1500	3	5-50	≤200	15-200	7.5×2	6900	16	8-10	15	4799×3140×3014
2ZSG1848	4800×1800	2	5-50	≤300	50-500	7.5×2	6489	16	8-10	15	4799×3440×2814
3ZSG1848	4800×1800	3	5-50	≤300	50-500	7.5×2	7750	16	8-10	15	4799×3440×3014
4ZSG1848	4800×1800	4	5-50	≤200	50-500	11×2	8300	16	8-10	15	4799×3440×3503
2ZSG1860	6000×1800	2	5-150	≤300	80-600	11×2	9950	16	8-10	15	6000×3440×3326
