Production:10–60 t/h
Feeding size:0.15–2 mm
Applied material:tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc

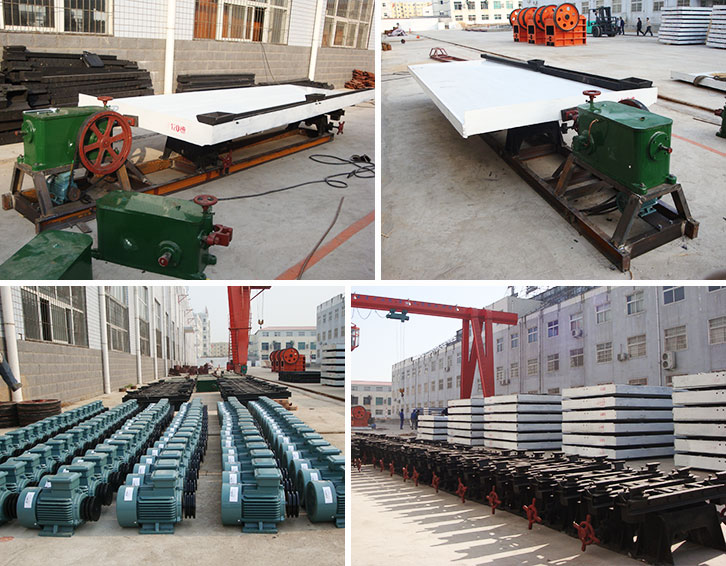

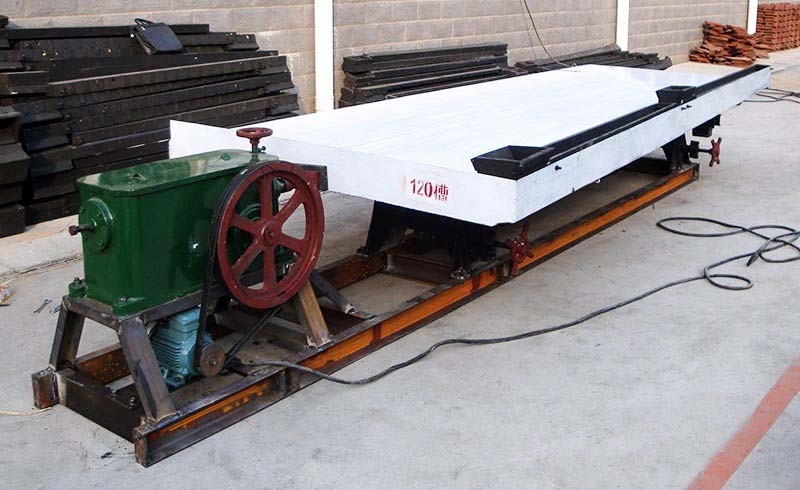

Free Inquiry The shaking table is a thin film, shear flow process equipment that separates particle grains of its feed material based on the differences in their specific gravity, density, size and shape. Shaking table is made up of bed surface, frame and transmission mechanism, which is used in ore dressing process.
The shaking table has the following advantages: stable separation process, easy control, large allowable range of ore concentration, high enrichment ratio, easy installation, simple operation, high cost, high performance and price ratio, durability and good separation efficiency.
Application area / Applicable materials: tin, tungsten, lead, tantalum, niobium, iron, manganese, iron, titanium, iron and coal, such as gold, silver, copper, iron, chromium, nickel, etc.
Name
Grit
concentrator
tableFine sand
concentrator
tableSludge
concentrator
table
Bed surface
DimensionsLength
(mm)4450
4450
4450
Driving
part Width
(mm)1855
1855
1855
Concentrate
part Width
(mm)1546
1546
1546
Max.feeding
size(mm)2
0.5
0.15
Feeding
amount
(t/d)30-60
10-20
15-25
Feeding
thickness
(%)25-30
20-25
15-25
Stroke
(mm)16-22
11-16
8-16
Frequency
(f)45-48
48-53
50-57
Bed surface
Water quantity
(t/d)80-150
30-60
10-17
Bed surface
Horizontal
obliquity(°)2.5-4.5
1.5-3.5
1-2
Bed surface
Portrait
obliquity(%)1.4
0.92
----
Table board
corner(°)32-42
40
42
Concentrating
area(㎡)7.6
7.6
7.6
Bed surface
Length ratio2.6
2.6
2.6
Shape of
side-bed
surfaceRectangle
Zigzag
Triangle
Motor
power(kw)1.1
1.1
1.1
Transmission
deviceEccentricity Linkage
