Sand Washer

Sand Washer

FOB Reference Price:Get Latest Price

Processing Capacity: 15-200t/h

Feeding size: 125-250mm

Processing Materials: river sand, silica sand, quartz, quartz sand, etc.

Emailsino@zdzg.com

Free Inquiry

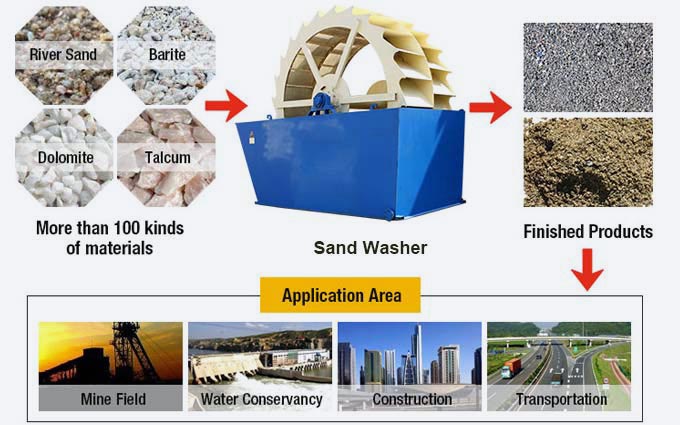

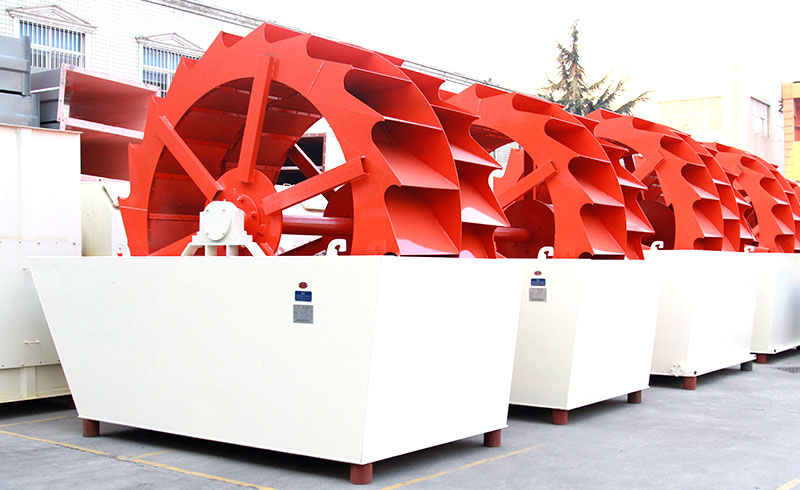

Introduction of Sand Washer:

The sand washing machine has the following advantages: cheap equipment, energy saving, high performance to price ratio, simple durable structure, stable operation, clean sand washing, high yield and high cleanliness, reasonable structure, less sand loss and large handling capacity in the process of sand washing.

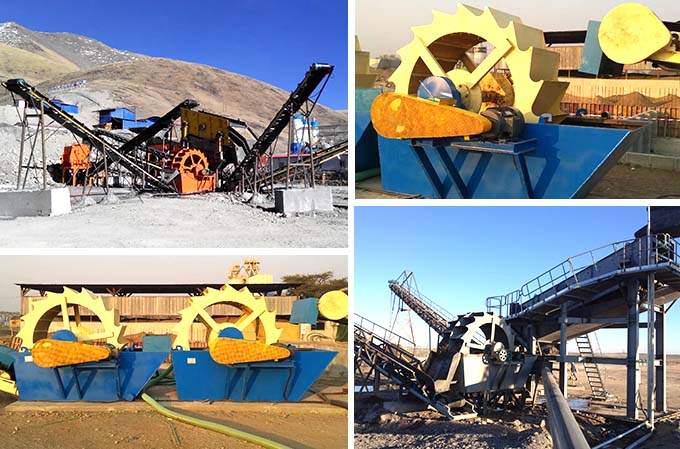

It is used in artificial sand production line, widely used in any material, most of the sand in sand and fine sand river, limestone, construction refuse, granite, cobblestone, natural sand, any material, stone / ore sand, river sand, Quartz sand and other kinds of 0-5mm materials river sand, artificial sand washing, etc.

Technical Parameter

VSI Sand Making Machine

HVI Sand Making Machine

HX Series Sand Making Machine

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Capacity
(t/h)
Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
(mm)
Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed(r/min) 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power(kw) 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension(L×W×H)(mm) 4100×2250×2300 4160×2360×2500 4540×2500×2830 5500×2750×3100 5500×2750×3100 5500×2750×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Hard material Soft material Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  50-140  90-230  2×75
HVI 0818 <30 <35 60-190 110-283 2×90
HVI 0922 <35 <40 70-210 150-330 2×110
HVI 0926 <35 <40 85-240 170-380 2×132
HVI 1032 <40 <45 130-278 180-400 2×160
HVI 1040 <40 <45 180-284 250-440 2×200
HVI 1263 <50 <55 320-498 370-585 2×315
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
FTM-06 35 2P   37-55KW 2000-3000 10-30 2500×1620×2600
FTM-07 45 4P   55-75KW 1500-2500 20-55 2700×1760×2800
