Production Capacity:0.26–30 m³
Rotate speed:200–530 r/min
Applied material:pebble, sand, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc
The sand making machine uses the stone-by-stone principle to achieve the crushing effect of good shape and high sand production ratio. This machine is applicable to the brittle materials, whose Mohs hardness is less than level 9, not suitable for the viscous materials or stones including too much soil.

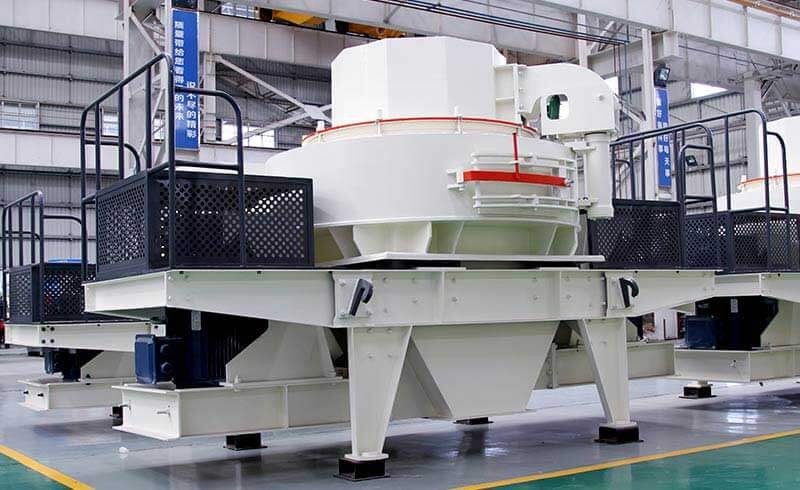

The Sand Making Machine produced by Zhongde Heavy Industries has simple structure. The unique bearing and advanced spindle design make the machine high load and high-speed rotation.

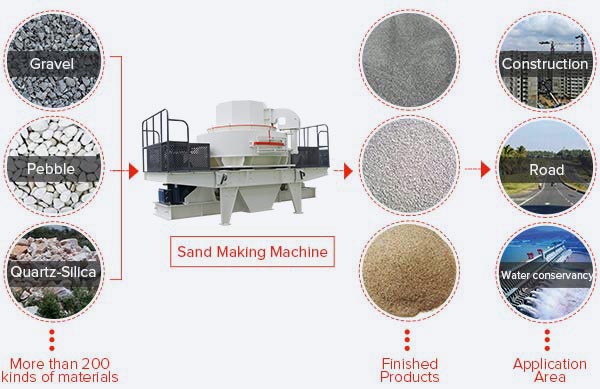

Materials that can be broken: granite, basalt, limestone, river pebble, cement clinker, quartzite, iron ore, calcite, diabase, bauxite, construction waste, glass, cement clinker and certain metals, etc.
VSI Sand Making Machine
HVI Sand Making Machine
HX Series Sand Making Machine
Model | VSI 7611 | VSI 8518 | VSI 9526 | VSI 1140 | VSI 1145 | VSI 1150 | |
Capacity (t/h) |
Feed both at center and sides | 80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
Feed at center | 40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
Max.feeding size (mm) |
Soft material | 35 | 40 | 45 | 50 | 50 | 50 |
Hard material | 30 | 35 | 40 | 40 | 45 | 45 | |
Rotation speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1150-1300 | 1150-1300 | 1150-1300 | |
Motor power(kw) | 4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 440 | 4P 500 | |
Overall dimension(L×W×H)(mm) | 4100×2250×2300 | 4160×2360×2500 | 4540×2500×2830 | 5500×2750×3100 | 5500×2750×3100 | 5500×2750×3100 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model | Hard material | Soft material | Sand Shaping | Sand Making | Motor Power(kw) |
Max.Feeding Size (mm) | Throughput(t/h) | ||||
HVI 0815 | <30 | <35 | 50-140 | 90-230 | 2×75 |
HVI 0818 | <30 | <35 | 60-190 | 110-283 | 2×90 |
HVI 0922 | <35 | <40 | 70-210 | 150-330 | 2×110 |
HVI 0926 | <35 | <40 | 85-240 | 170-380 | 2×132 |
HVI 1032 | <40 | <45 | 130-278 | 180-400 | 2×160 |
HVI 1040 | <40 | <45 | 180-284 | 250-440 | 2×200 |
HVI 1263 | <50 | <55 | 320-498 | 370-585 | 2×315 |
Model specification |
Max.feeding size (mm) |
Power (kw) |
Rotation speed of impeller (r/min) |
Capacity (t/h) |
Overall dimension (L×W×H) (mm) |
FTM-06 | 35 | 2P 37-55KW | 2000-3000 | 10-30 | 2500×1620×2600 |
FTM-07 | 45 | 4P 55-75KW | 1500-2500 | 20-55 | 2700×1760×2800 |
