Production Capacity:10-280t/h
Feeding Size:0-3mm
Applied Material:iron ore,magnetite, pyrrhotite, ilmenite, hematite, limonite, rare earth,manganese ore, slag, iron sand, slurry, etc.

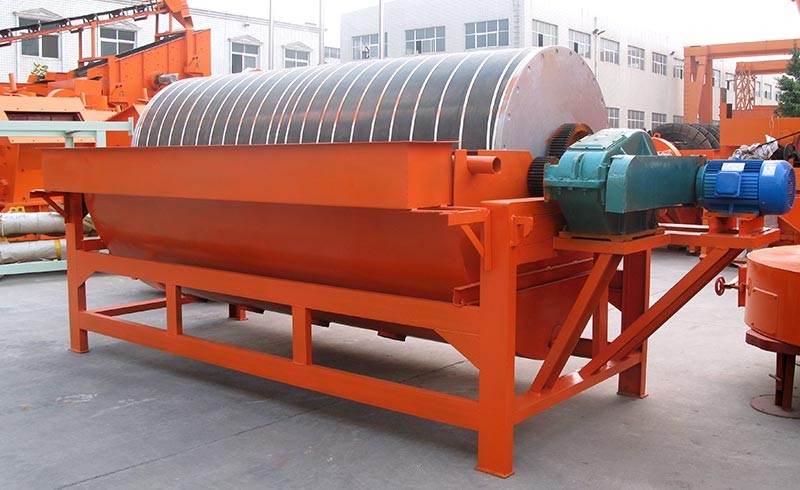

Magnetic separator uses dynamic magnetic system design, which has good separating effect.It has the following advantages: large magnetic field strength, large handling capacity, low maintenance rate, simple structure, easy operation, adjustable magnetic field intensity and large output.

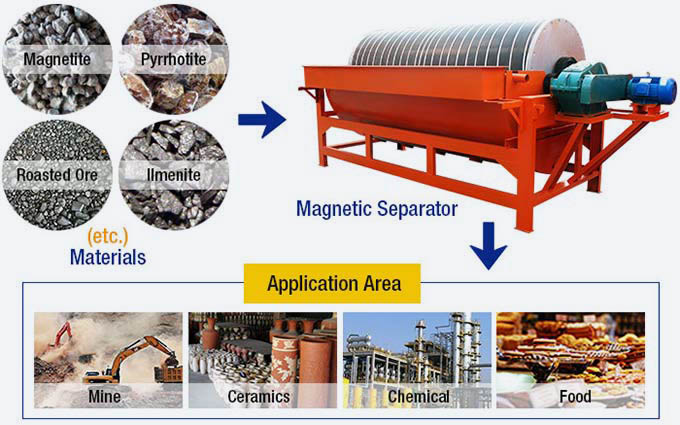

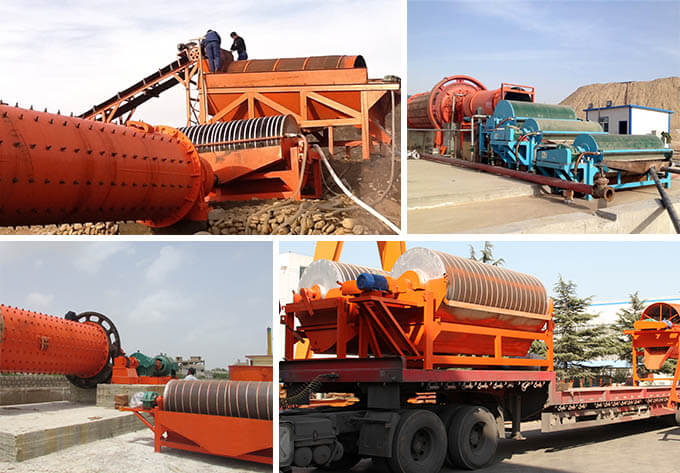

Application area / Applicable materials: iron ore, ore processing line, and other production lines requiring iron removal; iron containing magnetite, pyrrhotite, roasting ore, ilmenite, coal, nonmetallic ore, etc.; separation of iron ore, coal, building materials and weak magnetic ore.
Model
Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012
600
1200
<35
2-0
10-20
1.5
CTB6018
600
1800
<35
2-0
15-30
2.2
CTB7518
750
1800
<35
2-0
20-45
2.2
CTB9018
900
1800
<35
3-0
40-60
3
CTB9021
900
2100
<35
3-0
45-60
3
CTB9024
900
2400
<28
3-0
45-70
4
CTB1018
1050
1800
<20
3-0
50-75
5.5
CTB1021
1050
2100
<20
3-0
50-100
5.5
CTB1024
1050
2400
<20
3-0
60-120
5.5
CTB1218
1200
1800
<18
3-0
80-140
5.5
CTB1224
1200
2400
<18
3-0
85-180
7.5
CTB1230
1200
3000
<18
3-0
100-180
7.5
CTB1530
1500
3000
<14
3-0
170-280
11
