Production capacity: 0.2-8 m³/min
Rotation speed: 191–400 r/min
Applied Material:coal, fluorite, talc, gold, molybdenum ore, nickel ore, fluorite ore, copper ore, antimony ore, zinc, and tungsten ore,etc.

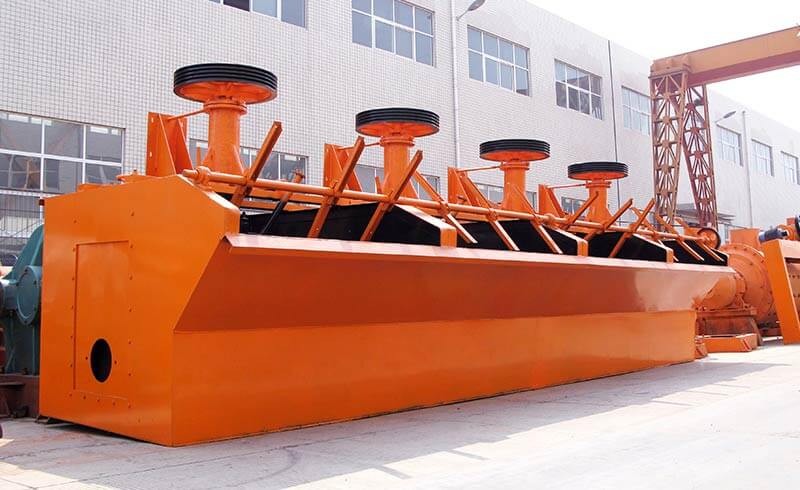

Free Inquiry Flotation machine is also called flotation cell, which is used in flotation separation process. It is equipped with automatic level control and electronic control device, easy to adjust, and impeller stirring force is strong.
The increase of the dispersion area of the slurry is beneficial to the improvement of the aeration capacity, and also to the weakening of the degree of floral turning. It has the advantages of simple structure, large handling capacity, convenient operation and easy maintenance. Reduction of precipitation, installed with automatic control of the level of the electronic device, easy to adjust the fine foam, flotation effect is good.

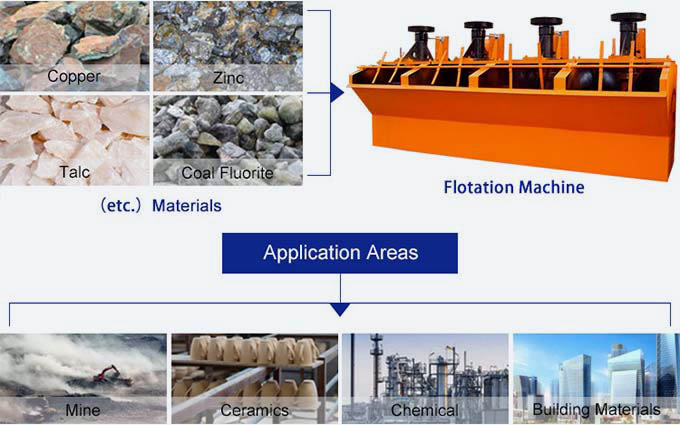

Application area / Applicable materials: non-ferrous metals, coal fluorite, talc lead, zinc, molybdenum, aluminum and other metal minerals; Quartz, floatable gold, silver, copper, iron and other optional minerals.
SF Series Flotation Machine
BF Series Flotation Machine
KYF Series Flotation Machine
XCF Series Flotation Machine
| Category | Specification Model |
Effective cubage （m³） |
Processing capacity （m³/min） |
Main shaft loam board | Dimensions (L×W×H) （m） |
Single trough Weight （t） |
|||
| Power （kw） |
Rotate speed （r/min） |
Rotate speed （r/min） |
Power （kw） |
||||||
| XJK type flotation machine |
XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 | 0.5 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 0.90×0.82×0.85 | 1.0 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | 2.5 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×1.2 | 3.6 | |
| SF type flotation machine |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 | 0.5 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | 1.0 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | 1.9 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | 2.6 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×1.2 | 2.9 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | 4.2 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | 4.5 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2 | 9.9 | |
| JJF type flotation machine |
JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 | 1.7 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | 2.4 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | 4.5 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | 4.9 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | 8.0 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×2.0 | 10.5 | |
| Model | Trough cubage （m³） |
Inside dimensions （L×W×H） （m） |
Air suction amount （m³/㎡·min） |
Power （kw） |
Motor model | Processing capacity （m³/min） |
Single trough weight (t) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9～1.05 | 1.5 | Y90L-4 | 0.2～0.4 | 0.5 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9～1.10 | 3.0 | Y132S-6 | 0.3～0.7 | 1.0 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0～1.10 | 5.5 4.0 |
Y132M2-6 Y132M1-6 |
0.6～1.2 | 1.4 |
| BF-2.0 | 2.0 | 1.40×1.45×1.12 | 1.0～1.10 | 7.5 | Y160M-6 | 1.0～2.0 | 1.8 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9～1.10 | 11 | Y180L-8 | 1.4～3.0 | 2.2 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9～1.10 | 15 | Y200L-8 | 2～4 | 2.6 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9～1.10 | 18.5 | Y225S-8 | 3～6 | 3.3 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9～1.10 | 22 30 |
Y225M-8 Y250M-8 |
4～8 | 4.2 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9～1.10 | 22 30 |
Y225M-8 Y250M-8 |
5～10 | 4.7 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9～1.10 | 37 45 |
Y280S-8 Y280M-8 |
8～16 | 8.4 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9～1.10 | 37 45 |
Y280S-8 Y280M-8 |
10～20 | 8.7 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9～1.10 | 45 | Y280M-8 | 12～24 | 9.2 |
| Model | KYF-1 | KYF-2 | KYF-3 | KYF-4 | KYF-8 | KYF-16 | KYF-24 | KYF-38 | |
| Chute Dimensions | Length（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height（mm） | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 2900 | 3400 | |
| Single effective Weight（t） | 1.1 | 1.5 | 1.9 | 2.3 | 3.6 | 5.9 | 9.9 | 15.1 | |
| Effective cubage（m³） | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production Capacity calculated by slurry volume(m³/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3—8 | 4—6 | 4—24 | 10—38 | |
| Main shaft motor | Model | Y132M1-6 | Y160M2-8 | Y160L-8 | Y180L-8 | Y200L-8 | Y250M-8 | Y250M-8 | Y280S-8 |
| Power（kw） | 4 | 5.5 | 7.5 | 11 | 15 | 30 | 30 | 37 | |
| Rotate speed(r/min) | 960 | 720 | 720 | 970 | 730 | 730 | 730 | 740 | |
| Diameter（mm） | 340 | 410 | 480 | 550 | 630 | 740 | 800 | 880 | |
| Height（mm） | 215 | 256 | 300 | 340 | 390 | 460 | — | 545 | |
| Rotate speed(r/min) | 281 | 247 | 219 | 200 | 175 | 160 | 150 | 138 | |
| Circular velocity(m/s) | 5 | 5.3 | 5.5 | 5.76 | 5.77 | 6.7 | 6.25 | 6.36 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power（kw） | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotate speed(r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotate speed(r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter（mm） | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 500 | |
| Wind pressure of fan（kpa） | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max. air injection amount(m³/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Model | XCF-1 | XCF-2 | XCF-3 | XCF-4 | XCF-8 | XCF-16 | XCF-24 | XCF-38 | |
| Dimensions | Length（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width（mm） | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height（mm） | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single Effective Weight（t） | 1.2 | 1.7 | 2.3 | 2.7 | 3.9 | 6.6 | 8.0 | 16.8 | |
| Effective cubage（m³） | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production Capacity calculated by slurry volume(m³/min) | 0.2—1 | 0.4—2 | 0.6—3 | 1.2—4 | 3—8 | 4—16 | 4—24 | 10—38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power（kw） | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | Rotate speed(r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 |
| Diameter（mm） | 400 | 460 | 540 | 620 | 720 | 860 | 950 | — | |
| Height（mm） | 155 | 175 | 207 | 247 | 321 | 349 | — | — | |
| Rotate speed(r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | — | |
| Circular velocity(m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power（kw） | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotate speed(r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| loam board | Rotate speed(r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter（mm） | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan （kpa） | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max. air injection amount(m³/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
