Bucket Elevator

FOB Reference Price:Get Latest Price

Processing capacity: 3-60m³ / h

Maximum lifting height: 28-32.7m

Applicable Materials: limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartz, bentonite, etc.

Emailsino@zdzg.com

Get Quotation

Free Inquiry

Overview
Technical data
Quick Way To Get Price

Introduction of Bucket Elevator:

Bucket Elevator is one of leading product of our company. It holds the advantages of simple structure, stable operation and high lifting height.

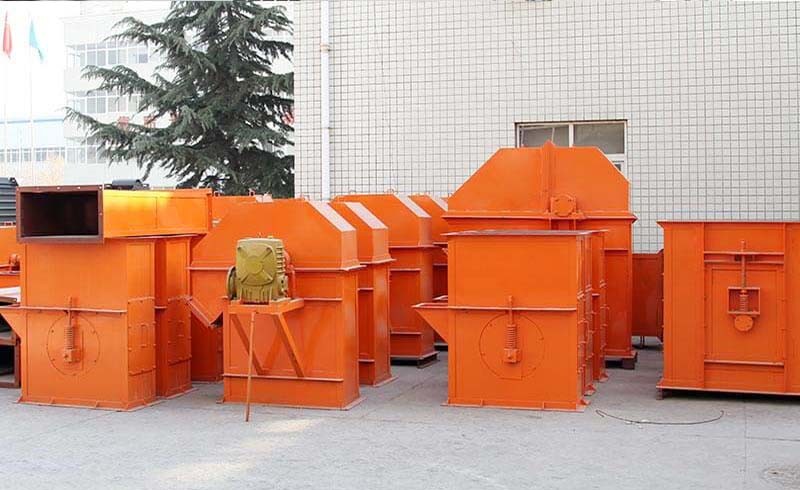

Bucket Elevator

Bucket Elevator is suitable for powdery, granular and small pieces of material.

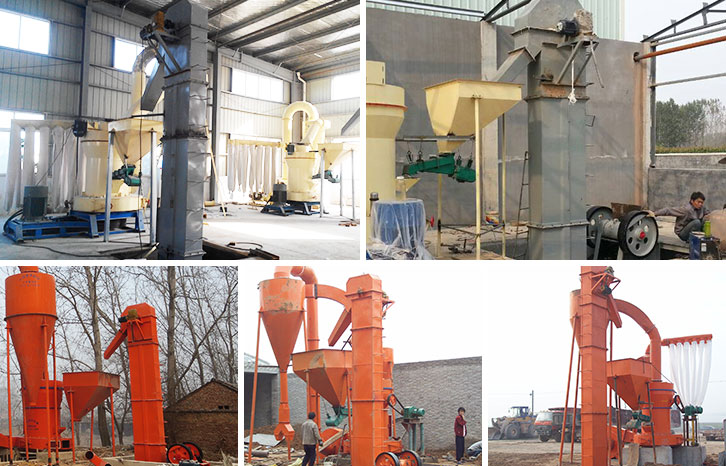

Bucket Elevator

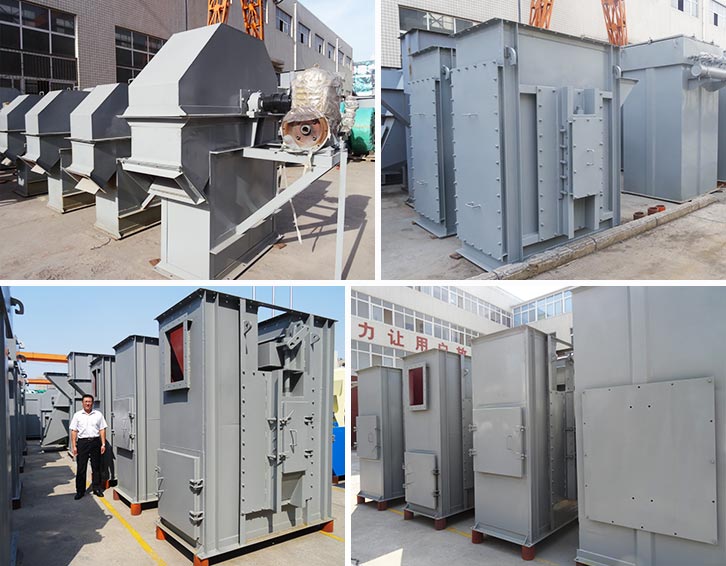

Considering material characteristics and work environment, we produce kinds of bucket elevators: belt bucket elevator, chain bucket elevator, plate chain bucket elevator, etc.

Technical Parameter

Technical parameters of ring chain bucket elevator

Specification	Max.lifting Height (m)	Conveying Capacity (m³/h)	Max.size (mm)	Pitch of Buckets (mm)	Motor Prower （kw）
TH160	25	7-12	15-20	400	3-4
TH200	28	8-15	20-30	500	3-5.5
TH250	30	10-25	25-35	500	4-7.5
TH300	30	25-35	30-40	500	5.5-11
TH315	40	30-40	35-45	512	5.5-15
TH400	40	45-60	40-55	512	11-22
TH500	40	65-80	50-60	512	15-30
TH630	40	100-120	60-65	688	18.5-37
TH800	40	130-150	65-75	920	22-45

Technical parameters of wire belt bucket elevator

Specification	Max.lifting Height (m)	Conveying Capacity (m³/h)	Max.size (mm)	Bucket Volume (L)	Motor Power （kw）
TDG160	80	34	0-20	2.6	2.2-11
TDG200	80	45	0-25	4.1	3-15
TDG250	80	71	0-30	6.5	5.5-22
TDG315	80	101	0-35	10	7.5-30
TDG400	80	158	0-40	16	15-45
TDG500	80	218	0-45	25	18.5-55
TDG630	80	345	0-50	40	30-90
TDG800	80	491	0-50	61	45-132

Plate chain bucket elevator

Specification	Max.lifting Height （m）	Max.lifting Capacity （m³/h）	Percentage Allowed（%）					Pitch （mm）	Motor Power （kw）
			10	25	50	75	100
			Max.size（mm）
NE15	40	16	65	50	40	30	25	101.66	1.5-4
NE30	59	31	90	75	58	47	40	152.4	2.2-7.5
NE50	62	60	90	75	58	47	40	152.4	3-15
NE100	58	110	130	105	80	65	55	200	7.5-30
NE150	65	170	130	105	80	65	55	200	11-37
NE200	73	220	170	135	100	85	70	250	18.5-75
NE300	61	320	170	135	100	85	70	250	22-75
NE400	47	420	205	165	125	105	90	300	45-90
NE500	58	500	240	190	145	120	100	300	45-132
