Ball Mill

Technical Parameter

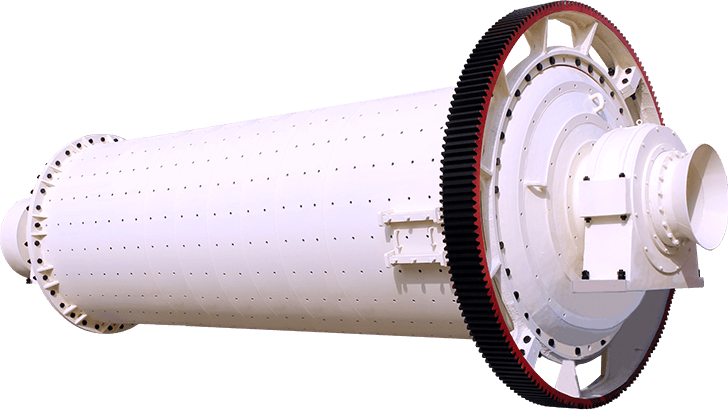

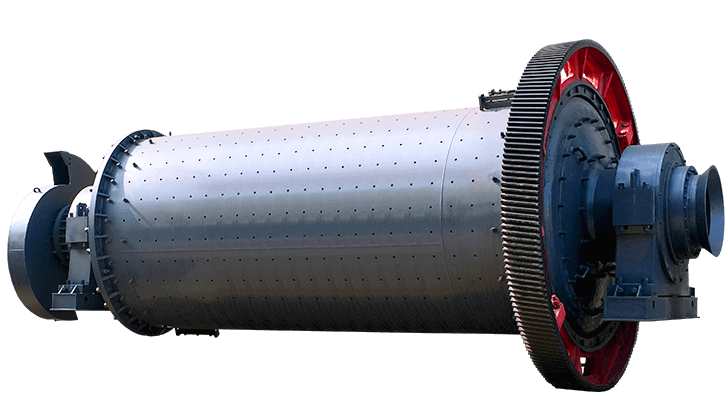

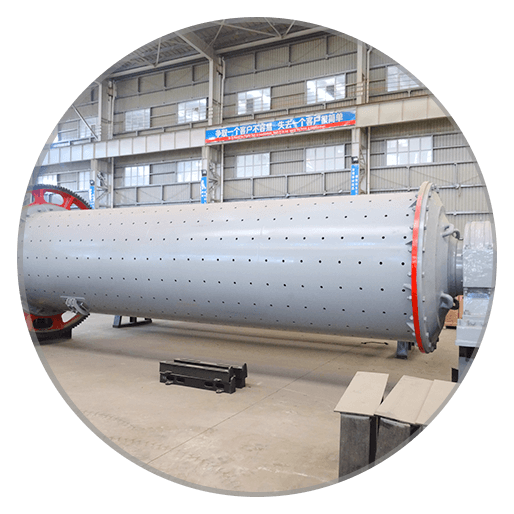

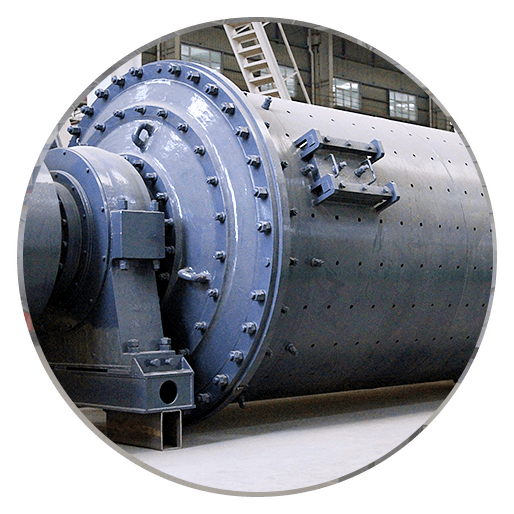

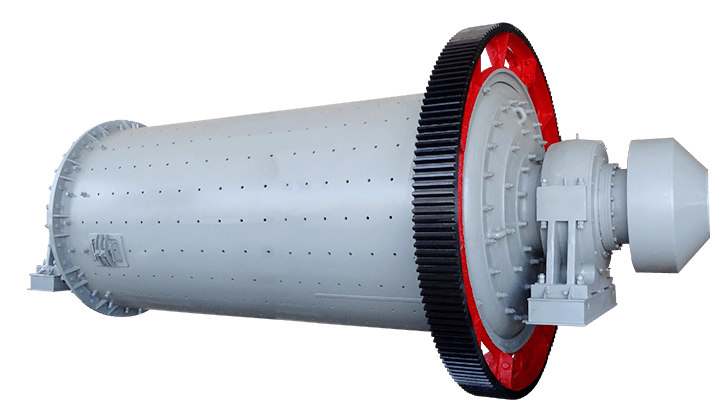

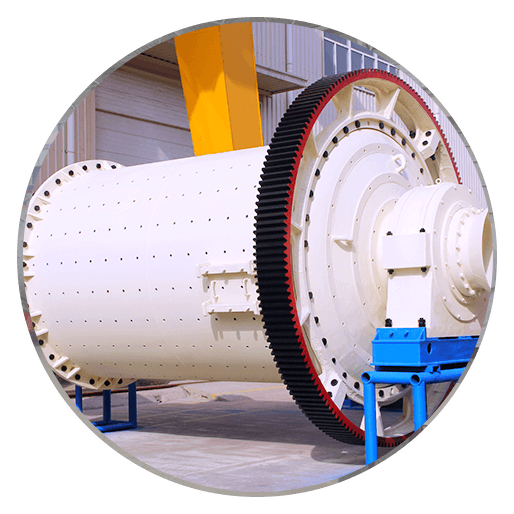

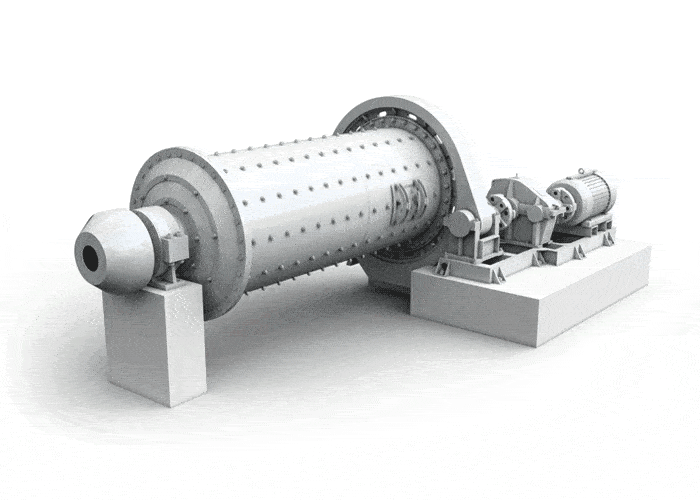

Ball Mill
Chinaware ball mill
MBS Ball Mill

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525

Model	Feeding capacity （t/time）	Shell rotation speed （r/min）	Reference motor （kw）	Liner material
600×700	0.05	50	2.2	Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600	0.075	42	3
900×1200	0.2	38.5	5.5
1300×1500	0.5	33	7.5
1500×1800	1.2	28.5	11
1800×2000	1.5	24	15
2600×2800	5	16.5	37
3000×3800	10	14.5	57.2
3200×4600	15	13.5	75

Model	Shell Specifications （mm）		Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
Model	Diameter	Length	Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149

Market area

As an advanced manufacturer and exporter in China, our company has produced several series of machines all over the world, such as Australia, Malaysia, Indonesia, Philippines, India, Pakistan, South Africa, Tanzania, Egypt, etc., which have been unanimously affirmed by users. The rate is over 80%
